GPU and CPU water blocks

Block Finder

Pick your card. We show the block made for its board.

Before you start

Read the boxBrand, series and model, e.g. ASUS TUF RTX 4080

Check the back stickerPart number and revision (REV 1.0, 2.0)

Pick it belowBrand, then series, then your card

Looking for a CPU block? CPU blocks fit by socket.

Which socket is my CPU?

Build planner

Found your block? Plan the rest of the loop

The build planner adds the radiator, pump, tubing, fittings and coolant one step at a time, then puts the whole loop in your cart.

Open the build planner

Check it yourself

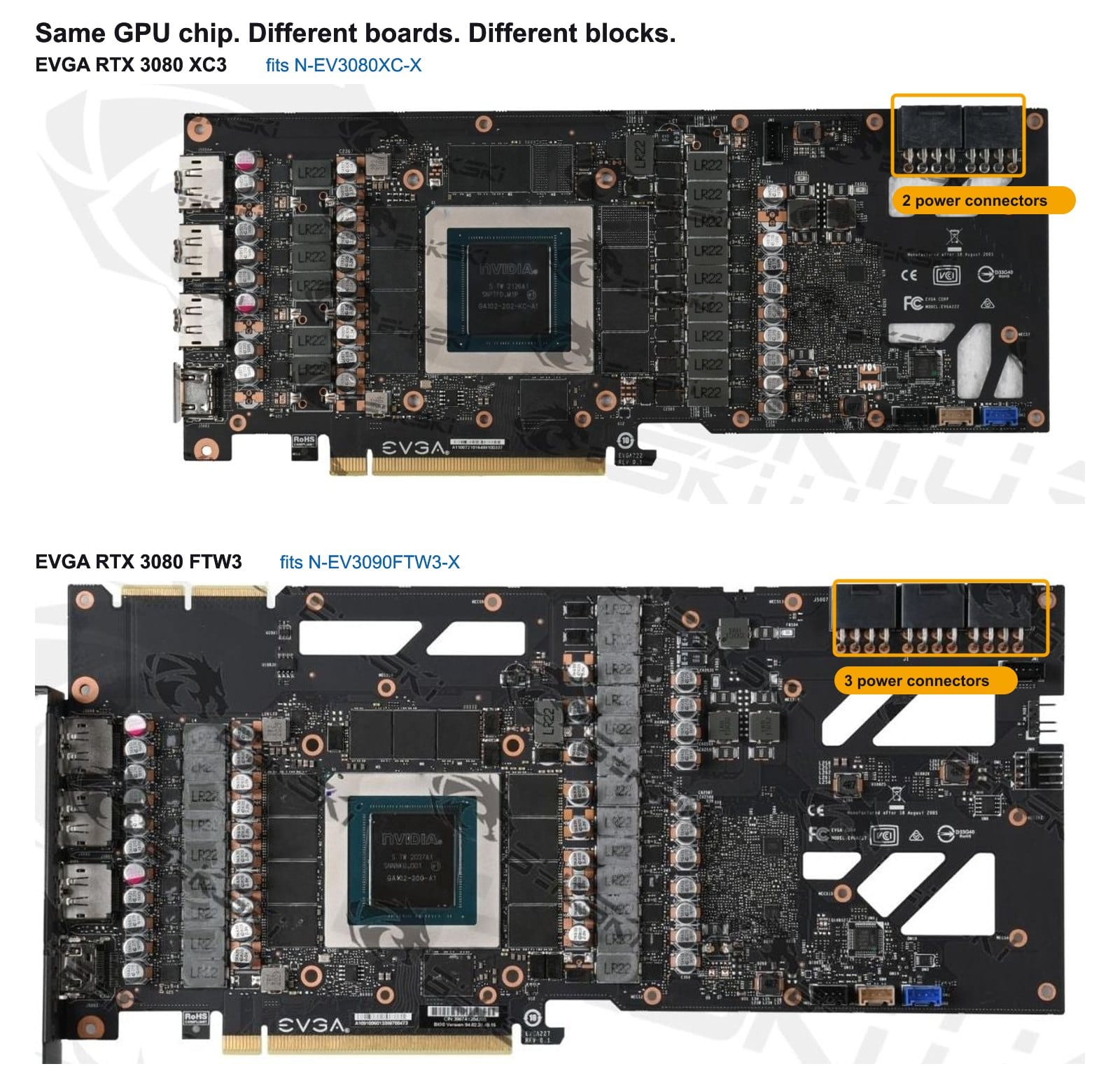

Same chip, different board — Both are RTX 3080s. The boards differ, so the blocks differ.

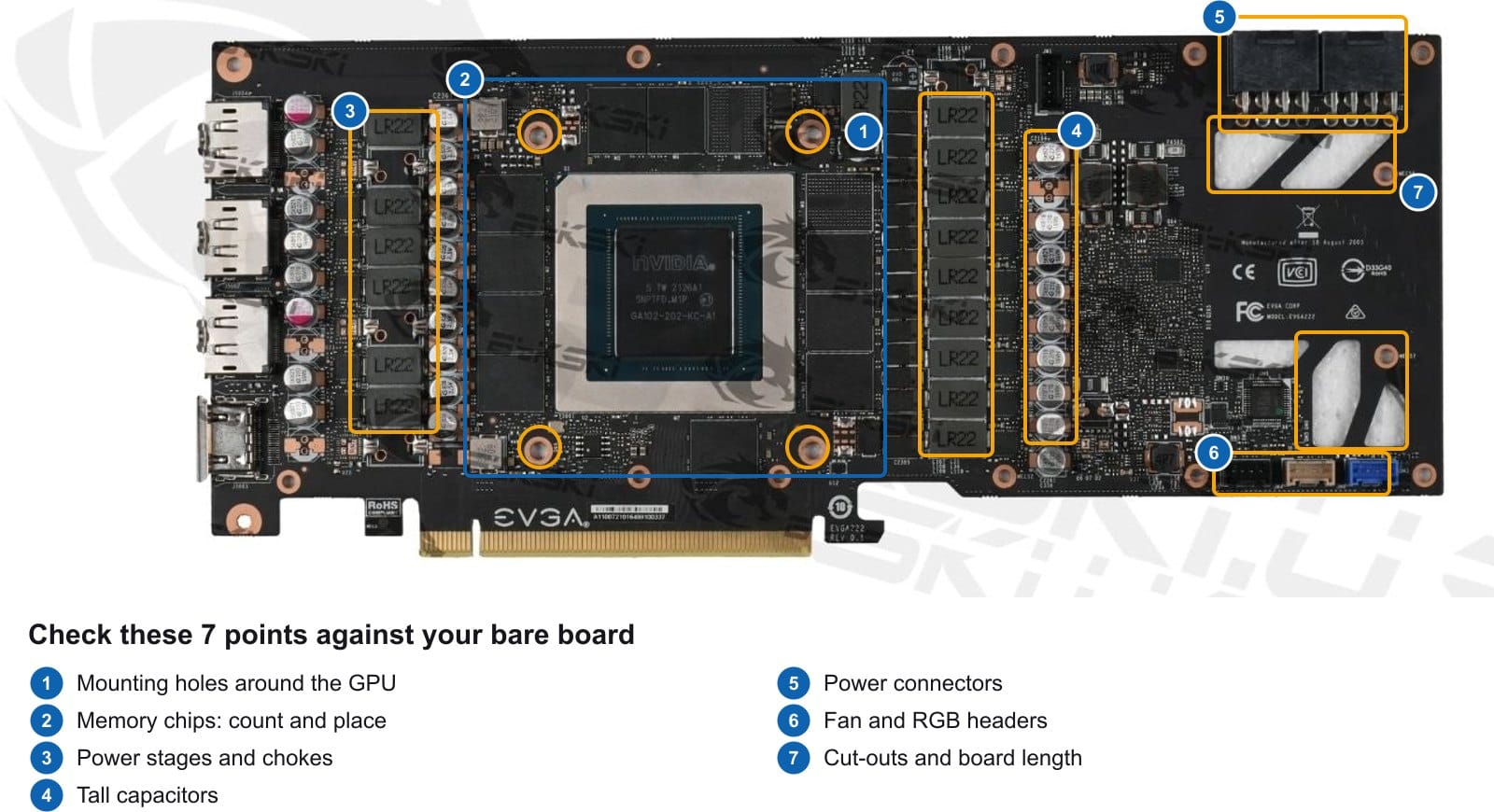

Compare your bare board — Match these 7 points against the board shown on the block's listing.

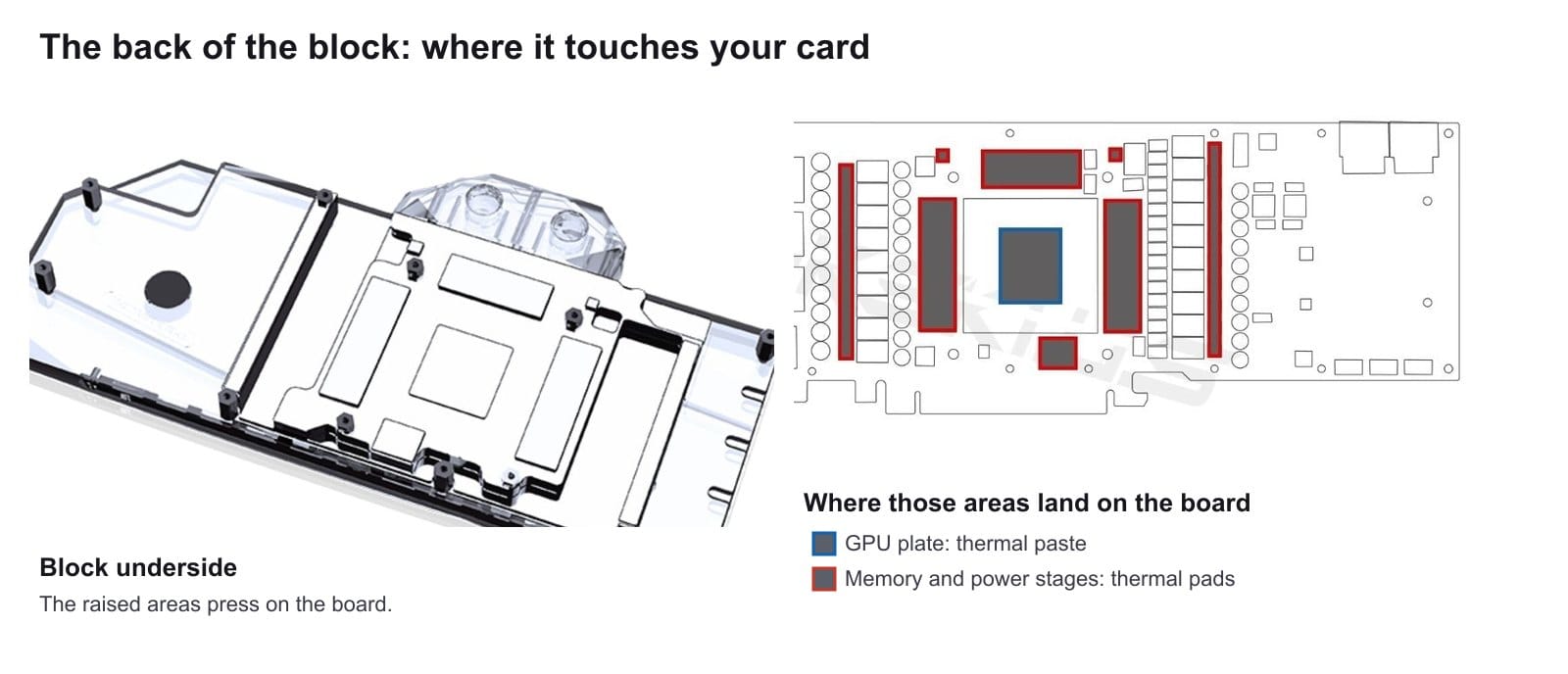

The back of the block — The raised areas must land on the GPU, memory and power stages.

Still not sure?

Send your card model and a photo of the bare board. A technician in Boise checks it before you order.

Ask a technician

Browse by category

Which socket is my CPU?

Find your CPU's generation, read the socket, then the mounting pattern. Blocks fit by pattern.

What decides whether a block fits is the mounting hole pattern, not the socket name.

Nine patterns cover everything below. Inside a pattern, blocks are interchangeable, which is why one block can honestly say LGA 115x / 1200 or AM4 / AM5. A socket revision that breaks CPU compatibility usually leaves cooler compatibility alone.

Mounting patterns

75 x 75 mm

LGA 1156, 1155, 1150, 1151, 1200

1st gen Core (Lynnfield) through 11th gen Rocket Lake, 2009 to 2021.

78 x 78 mm

LGA 1700, LGA 1851

12th, 13th, 14th gen Core, and Core Ultra 200S. An LGA 1700 block fits Core Ultra.

80 x 80 mm

LGA 1366, 2011, 2011-3, 2066

1st gen Core i7 and every Intel HEDT socket up to Cascade Lake-X.

54 x 90 mm

AM4, AM5

Ryzen 1000 through 9000.Not the AM3 pattern. A block that lists both ships a bracket for each.

48 x 96 mm

AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+

Athlon 64 X2, Phenom, Phenom II, FX and the A-series APUs, 2006 to 2016.

Threadripper / SP3

TR4, sTRX4, sWRX8, SP3 (LGA 4094)

Threadripper 1000 to 5000WX and EPYC 7001 to 7003 share one mounting.Threadripper 7000 and 9000 (sTR5) do not belong here.

sTR5 / SP6

sTR5, SP6

Threadripper 7000 and 9000, and EPYC 8004 Siena, share one mounting.

SP5

SP5 (LGA 6096)

EPYC 9004 and 9005. Its own pattern; nothing else shares it.

Intel server

LGA 3647, 4189, 4677, 4710, 7529

Each Xeon socket carries its own mounting. LGA 3647 exists in Square and Narrow ILM. LGA 4710 keeps the LGA 4677 footprint.

Intel, desktop

Generation	Example	Socket	Mounting
Core 2, Pentium D No i prefix: E, Q, QX series	Q6600, E8400	LGA 775	72 x 72
1st gen Core i7, Bloomfield i7-9xx, three digits	i7-920, i7-980X	LGA 1366	80 x 80
1st gen Core, Lynnfield i5-7xx, i7-8xx, three digits	i5-750, i7-870	LGA 1156	75 x 75
2nd gen Sandy Bridge, 3rd gen Ivy Bridge Model starts 2 or 3	i7-2600K, i7-3770K	LGA 1155	75 x 75
4th gen Haswell, 5th gen Broadwell Model starts 4 or 5	i7-4790K, i7-5775C	LGA 1150	75 x 75
6th to 9th gen, Skylake to Coffee Lake Refresh Model starts 6, 7, 8 or 9	i7-6700K, i7-8700K, i9-9900K	LGA 1151	75 x 75
10th gen Comet Lake, 11th gen Rocket Lake Model starts 10 or 11	i9-10900K, i9-11900K	LGA 1200	75 x 75
12th, 13th, 14th gen, Alder Lake to Raptor Lake Refresh Model starts 12, 13 or 14	i9-12900K, i9-13900K, i9-14900K	LGA 1700	78 x 78
Core Ultra 200S, Arrow Lake Core Ultra + 2xx	Core Ultra 9 285K	LGA 1851	78 x 78

Intel, HEDT

Generation	Example	Socket	Mounting
Sandy Bridge-E, Ivy Bridge-E i7-39xx, i7-49xx	i7-3960X, i7-4960X	LGA 2011	80 x 80
Haswell-E, Broadwell-E i7-58xx, 59xx, 69xx	i7-5960X, i7-6950X	LGA 2011-3	80 x 80
Skylake-X, Kaby Lake-X, Cascade Lake-X i7-78xx to i9-10980XE	i9-7980XE, i9-10980XE	LGA 2066	80 x 80

Intel, server

Xeon Scalable model numbers: the first digit is the tier (8 Platinum, 6 and 5 Gold, 4 Silver, 3 Bronze). The second digit is the generation: 8180 is 1st gen, 8280 is 2nd, 8380 is 3rd, 8480 is 4th, 8580 is 5th.

Generation	Example	Socket	Mounting
Xeon Scalable 1st and 2nd gen, Skylake-SP, Cascade Lake-SP Second digit 1 or 2	Platinum 8180, 8280	LGA 3647	Square or Narrow ILM
Xeon Scalable 3rd gen, Cooper Lake, Ice Lake-SP Second digit 3	Platinum 8380	LGA 4189	LGA 4189
Xeon Scalable 4th and 5th gen, Sapphire Rapids, Emerald Rapids Second digit 4 or 5, or Xeon Max	Platinum 8480+, 8592+	LGA 4677	LGA 4677
Xeon 6, 6500P / 6700P / 6700E Granite Rapids-SP, Sierra Forest-SP	Xeon 6 6787P	LGA 4710	LGA 4677 footprint
Xeon 6, 6900P / 6900E Granite Rapids-AP, Sierra Forest-AP	Xeon 6 6980P	LGA 7529	LGA 7529

AMD, desktop

Generation	Example	Socket	Mounting
Phenom II, Athlon II, FX FX- or Phenom II	FX-8350	AM3 / AM3+	48 x 96
A-series APU A4, A6, A8, A10 + four digits	A10-7850K	FM1 / FM2 / FM2+	48 x 96
Ryzen 1000 to 5000, Athlon 3000G Model starts 1, 2, 3, 4 or 5	1800X, 3700X, 5800X3D	AM4	54 x 90
Ryzen 7000, 8000, 9000 Model starts 7, 8 or 9	7800X3D, 8700G, 9950X	AM5	54 x 90

AMD, Threadripper and EPYC

Generation	Example	Socket	Mounting
Threadripper 1000, 2000 Four digits ending X or WX	1950X, 2990WX	TR4	Threadripper / SP3
Threadripper 3000 39xx X	3970X, 3990X	sTRX4	Threadripper / SP3
Threadripper PRO 3000WX, 5000WX PRO + WX	5995WX	sWRX8	Threadripper / SP3
Threadripper 7000, 9000, PRO 7000WX, 9000WX 79xx or 99xx, X or WX	7980X, 7995WX, 9980X	sTR5	sTR5 / SP6
EPYC 7001, 7002, 7003, Naples, Rome, Milan EPYC 7xxx	EPYC 7742	SP3 (LGA 4094)	Threadripper / SP3
EPYC 9004, 9005, Genoa, Bergamo, Turin EPYC 9xxx	EPYC 9654	SP5 (LGA 6096)	SP5
EPYC 8004, Siena EPYC 8xxx	EPYC 8324P	SP6	sTR5 / SP6

ARM

Generation	Example	Socket	Mounting
Phytium Tengyun S5000C 64-core server part	S5000C 64	S5000C	Its own

Two sockets with the same mounting pattern take the same block. Two sockets with different patterns do not, whatever the CPU names have in common. If your socket is not on this chart, ask us before you order.
