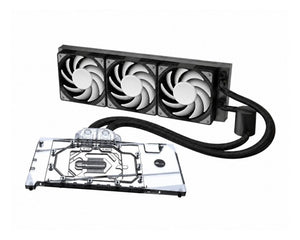

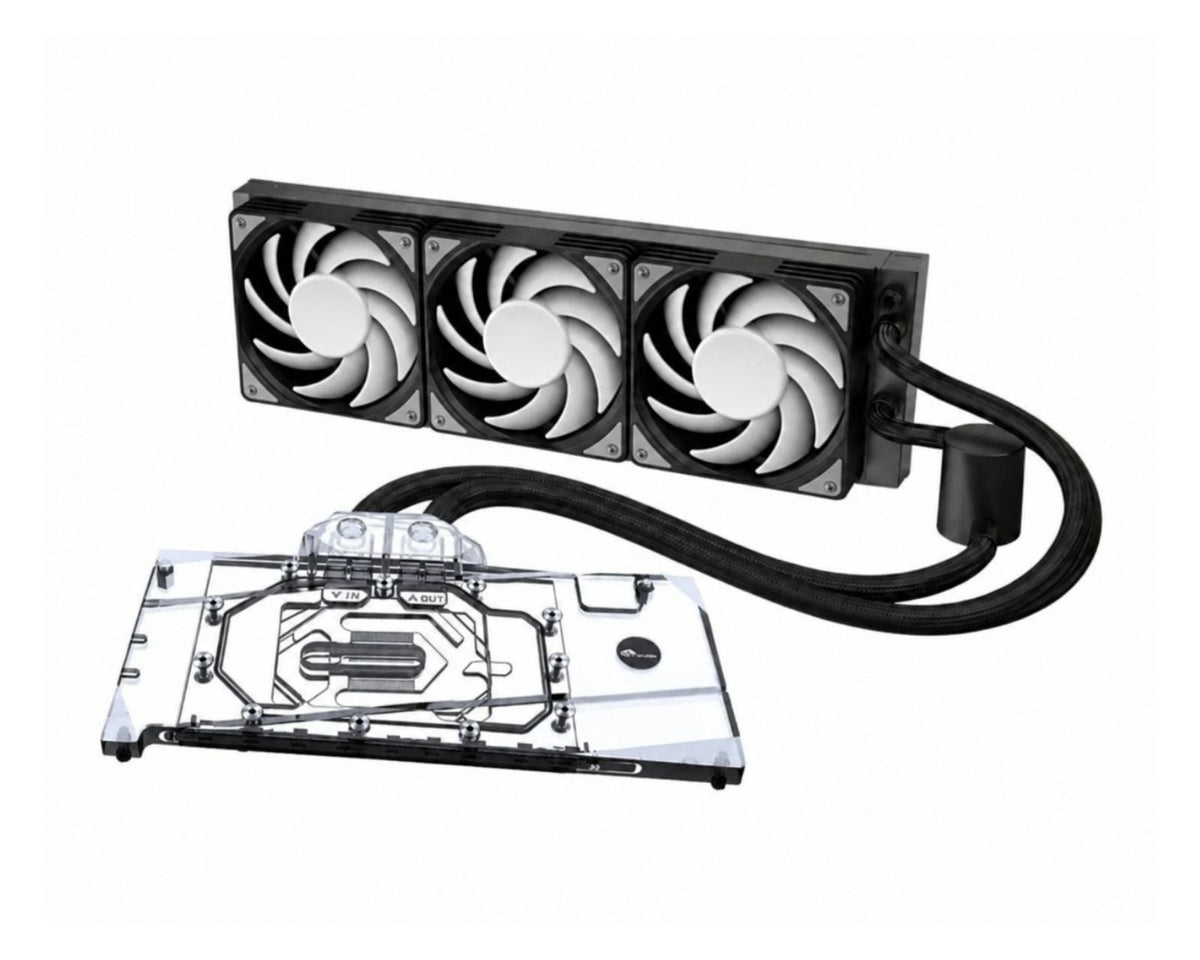

Bykski 360mm AIO Liquid GPU Cooler for Gigabyte RTX 3090 / 3080 Gaming OC (B-FRD-GV3090GMOC-X-360)

B-FRD-GV3090GMOC-X Pre-order

$449.99USDFree shipping, lower 48

US import duties and tariffs are included in every price.

Ships directly from our Idaho inventory. You avoid overseas sellers, processing delays, international shipping, customs hold-ups and additional fees.

Pre-order — normally stocked

Expect dispatch in about 20 business days

Latest 24 business days. Cancel any time before it ships for a full refund.

A regular catalogue item — we're between shipments. Your order is filled before any stock goes back on the website.

What this works with

Check these against your build before you order. If anything here does not match what you have, ask us first — it is cheaper than a return.

GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 Ti GAMING OC 3X 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 Ti EAGLE OC 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 GAMING OC 3X 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 EAGLE OC 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 VISION OC 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 GAMING BOX
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TURBO 10GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 GAMING OC 3X 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 EAGLE OC 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 VISION OC 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 TURBO 24GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 Ti VISION OC 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 Ti TURBO 12GB

Not sure? Send us your model/part number and we'll confirm it for you.

Why buy it here

US warranty, handled in Boise

Claims are settled here, by the people who sold it to you.

Exclusive US distributor

The official US source for Bykski, so every part is genuine.

Inline pump 360 radiator, 63 mm with fans Sealed, filled, bled

GPU AIO · Gigabyte RTX 3090 / 3080 Gaming OC

Sealed. Filled. Bled.

A complete liquid cooler for the Gigabyte RTX 3090 / 3080 Gaming OC, sealed at the factory. One copper block covers the GPU, the memory and the power stages; the radiator mounts at the front or top of your case and pushes the heat out. Strip the stock cooler, fit the block, mount the radiator. No filling, no bleeding, no leak test.

Front

GPU · memory · power stages

Inline

Pump, nothing mounted

360 mm

Radiator mount needed

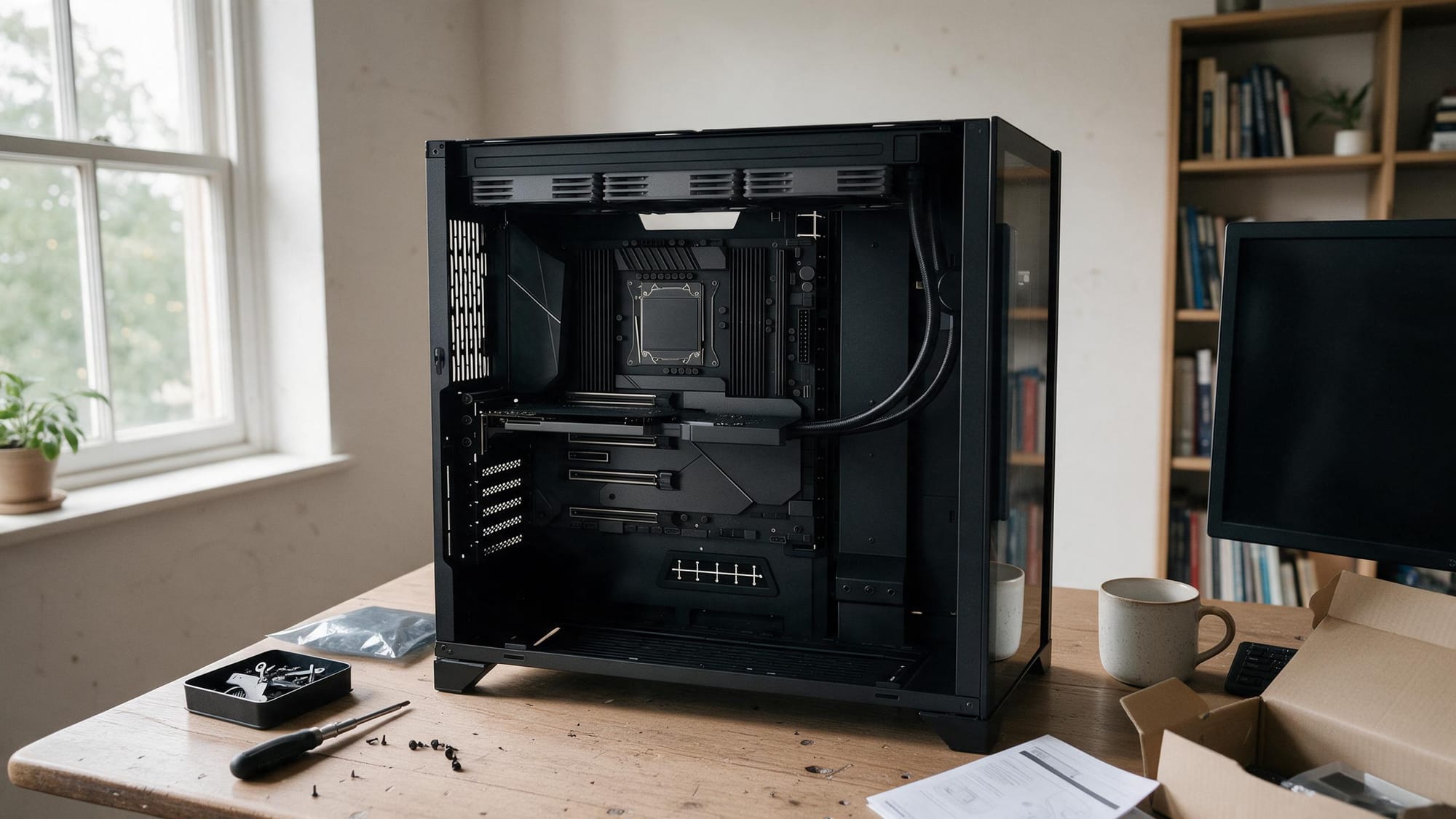

A workstation mid-build on a desk: the kit fitted to the card, block and tubing to the radiator in the top of the case

Warm air out the top hot line return

Where the heat goes

Heat leaves the case instead of heating everything else in it

A stock air cooler blows the Gigabyte RTX 3090 / 3080 Gaming OC's heat into the case, where your other cards and the CPU have to deal with it. This kit carries it through the tubing to the radiator, and the fans push it straight out of the case.

The noise moves too. Three big fans turning slowly on the radiator replace a small blower screaming an inch from the chip. Same heat removed, most of the noise gone.

Built for a card that never gets a break. A Gigabyte RTX 3090 / 3080 Gaming OC in a server can run at full load for hours at a time, and this cooler is sized for that, not for an evening of gaming.

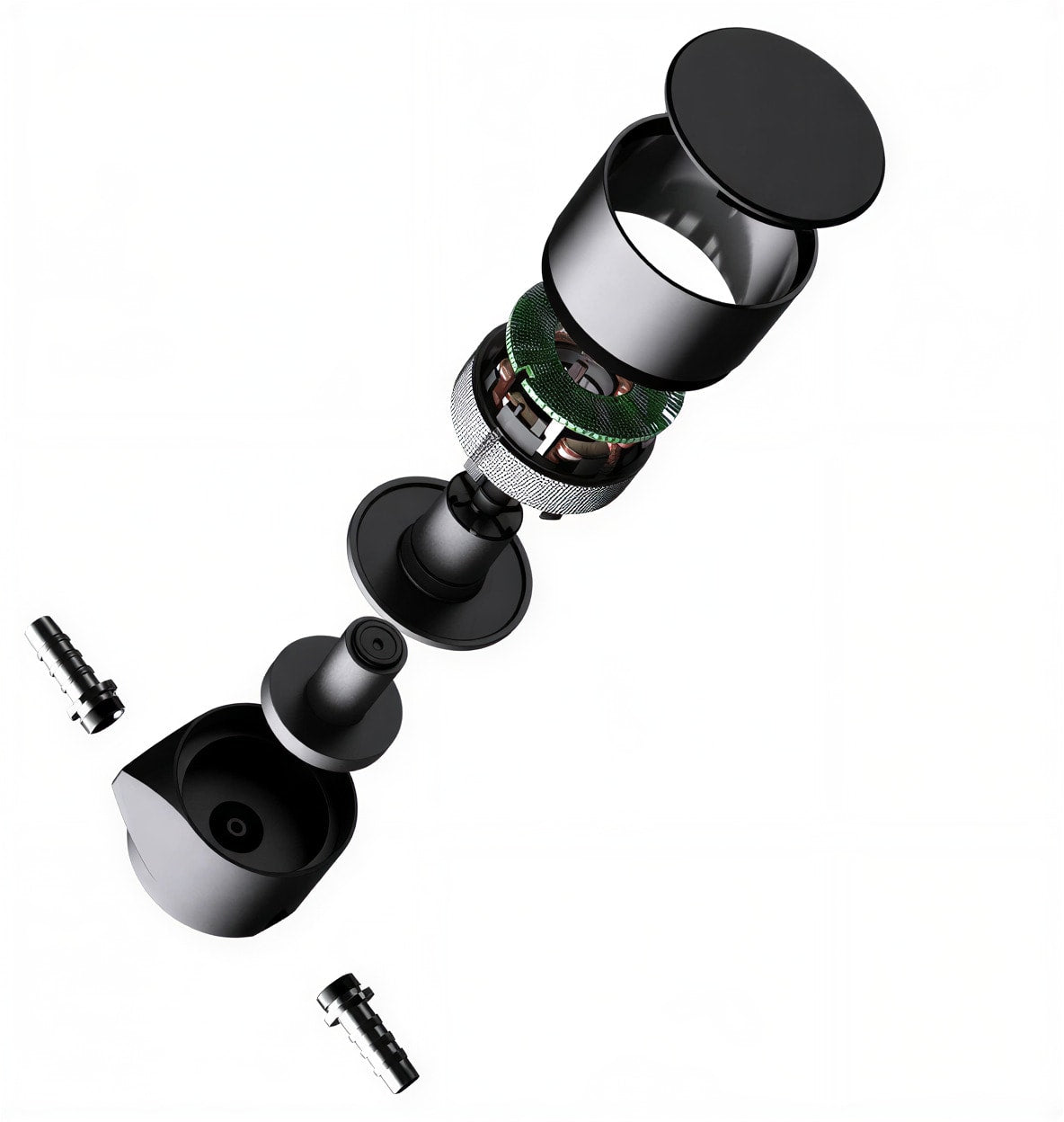

The inline pump, exploded: housing, impeller and the two tubing connections

The part you cannot see in a photo

The pump is inline, not on the block

On most all-in-one coolers the pump is built into the block. On this kit it is inline, in the tubing between the block and the radiator, and nothing is mounted to the card.

There is nothing to mount and nothing vibrating against the card. Because the pump is not pressing against anything, it runs quieter than a pump built into a block.

It is compact and powerful: a 40 mm can, 51 mm tall, moving 450 liters an hour, at 7000 RPM on a 4-pin PWM header.

Pump6 specs

PositionInline

Speed7000 RPM

Flow Rate450 L/h

Head7 m

Dimensions40 mm diameter x 51 mm height

Connector4-pin PWM

Everything on the loop, by the number

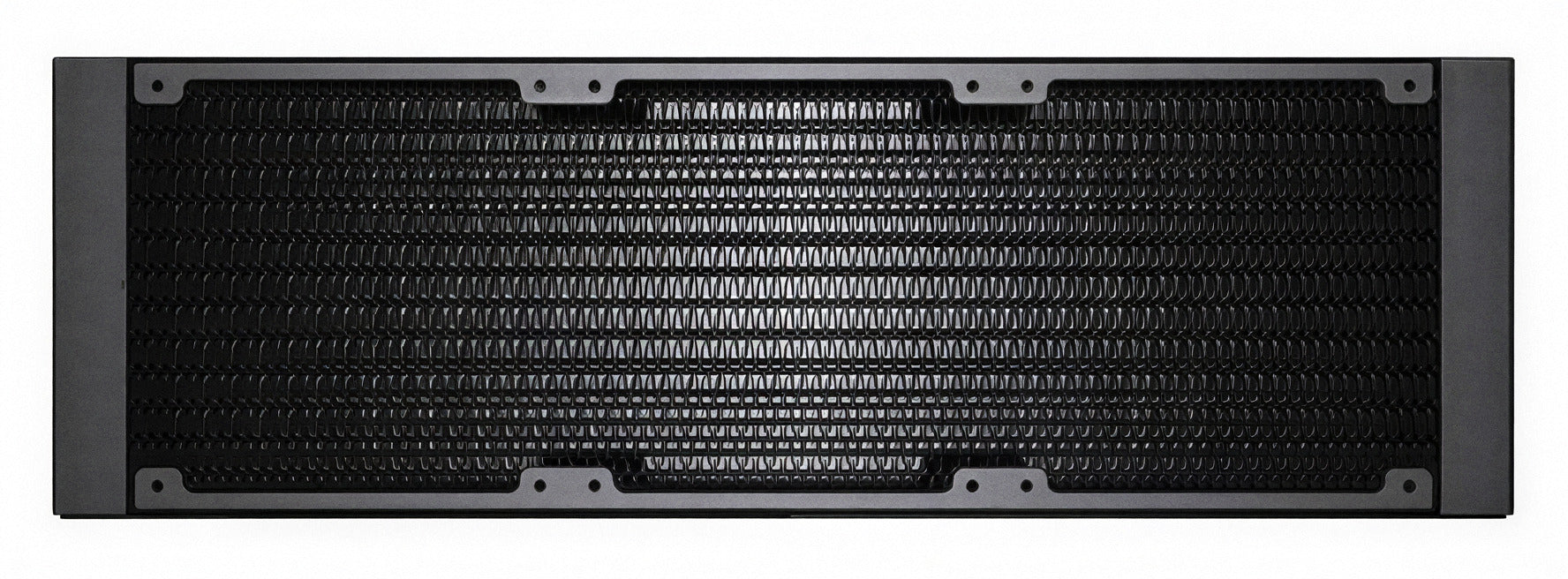

Radiator, fans, block

63 mm

Thick, with fans fitted

The thicker 360 radiator, 12 water channels, aluminum, fans already mounted. More metal than the standard part, because this card runs at full load all day.

Radiator4 specs

Dimensions396 x 120 x 38 mm

Depth with Fans63 mm

MaterialAluminum

Channels12

101.65 CFM

Per fan, at 3000 RPM

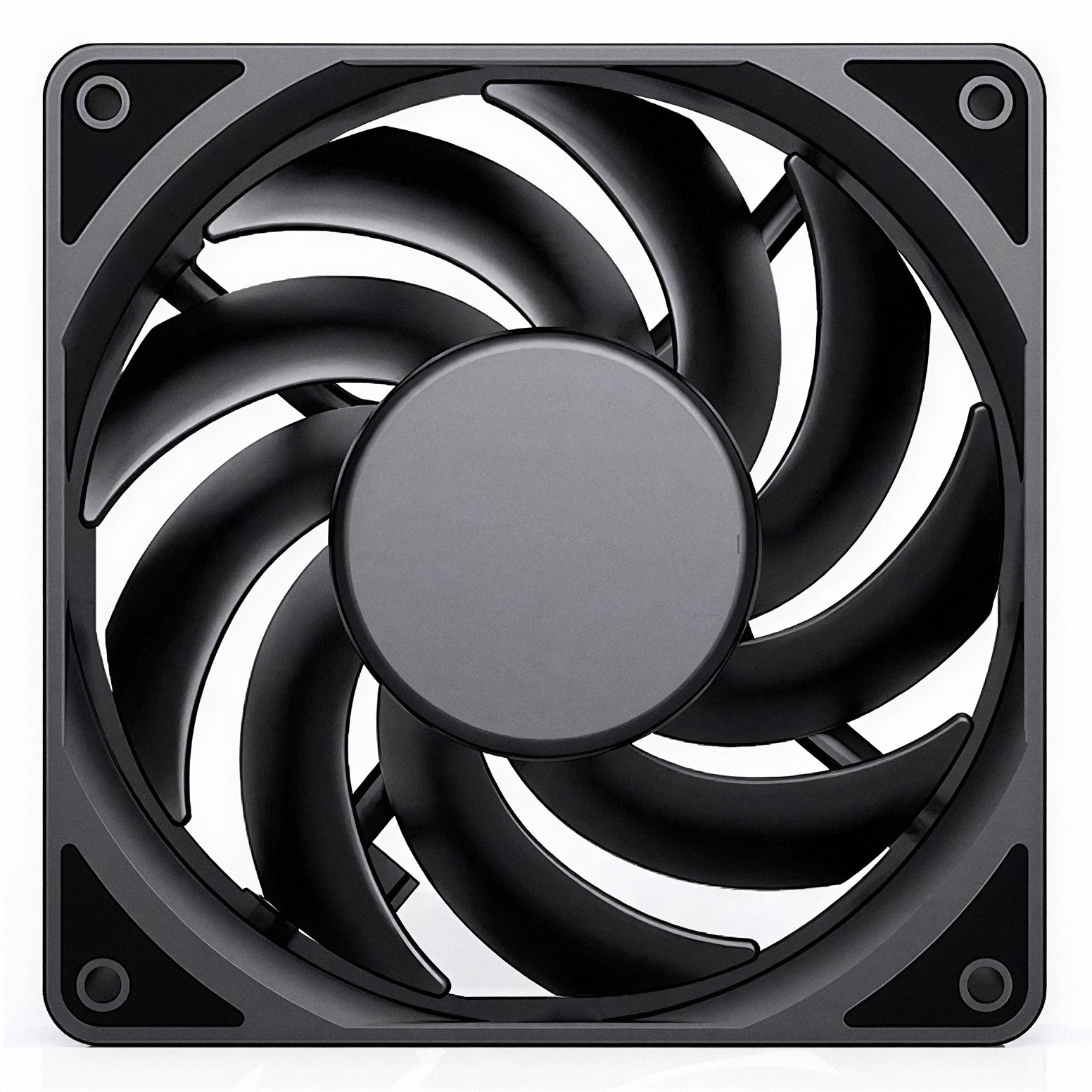

Three 120 mm PWM fans, built to push air through a thick radiator. They spin down to quiet when the card is idle and ramp up only when it is working.

Fans7 specs

Dimensions120 x 120 x 25 mm

Quantity3

Type120 mm PWM

Speed3000 RPM

Airflow101.65 CFM

Static Pressure5.27 mmH2O

Noise Level45.6 dBA

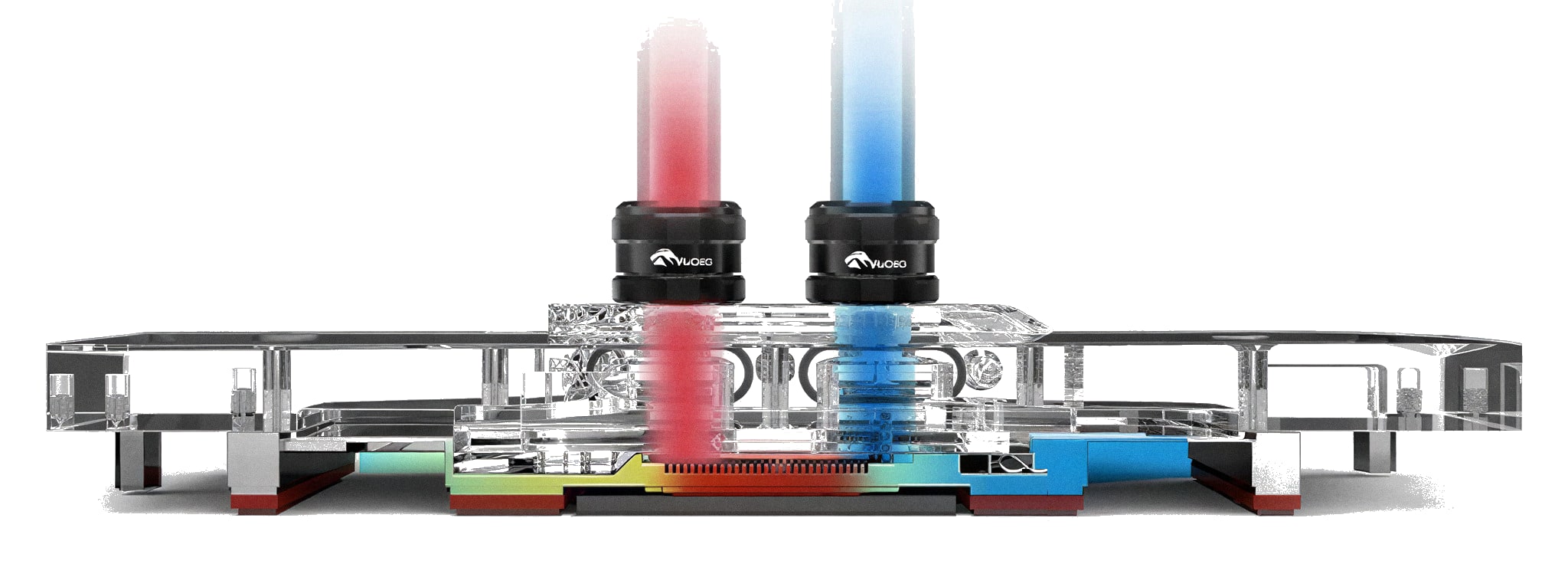

0.35 mm

Copper between chip and coolant

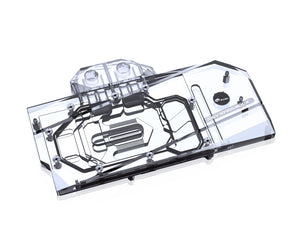

A nickel-plated copper plate covers the GPU, memory, and power stages, with a 0.35 mm section over the chip and 44 channels to direct coolant. An aluminum backplate covers the back of the card.

Block4 specs

Dimensions200.00 x 150.00 x 26.50 mm

MaterialT2 Copper, Electroless Nickel

Block Top MaterialAcrylic

Base Thickness0.35 mm

About this part

The Bykski 360mm AIO liquid GPU cooler is a sealed loop that arrives pre-assembled, pre-filled, and pre-bled. It eliminates custom loop assembly while cooling the GPU chip, memory, and power stages with a 360 mm radiator.

An inline pump in the tubing run isolates vibration from the card, allowing the water block to maintain even mounting pressure. The clear acrylic top provides a direct view of coolant flow over the GPU chip.

In the box

Pre-assembled cooling loop (radiator, inline pump, tubing, and GPU water block with backplate)
120 mm PWM cooling fans (3)
Thermal pads for memory and power stages
Thermal paste for the GPU chip
Mounting hardware

If the gallery shows a parts diagram, that diagram is the source of truth for what ships.

Datasheet

Technical specifications 7 specs

General
Micro-Channels	44 channels, 0.3 mm width
Tubing
Tubing Material	EPDM Braided
Tubing Outer Diameter	12 mm
Tubing Length (Radiator to Pump)	70 mm
Tubing Length (Pump to Block)	360.93 mm
General
Port Thread	G1/4
Warranty	1 Year

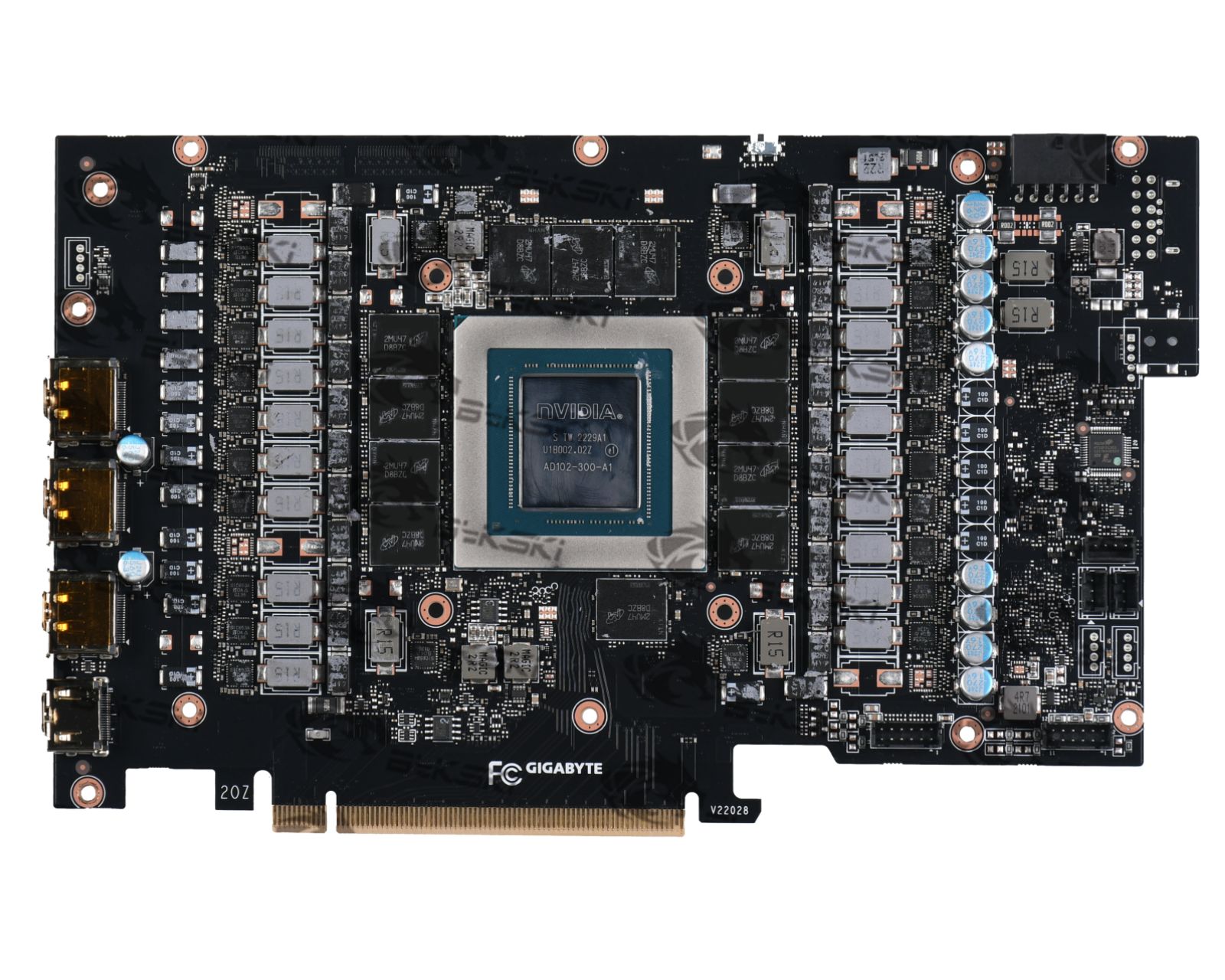

Compatibility is decided by the circuit board, not the name on the box

Machined for the Gigabyte RTX 3090 / 3080 Gaming OC board

Two cards with the same name can be built on different circuit boards, and the block only fits the one it was machined for. This is that board. Check your card in the Block Finder first. If you are still not sure, send us a picture of your card with the cooler off before you order.

ONLY Compatible with:

GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TI GAMING OC 3X 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TI EAGLE OC 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 GAMING OC 3X 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 EAGLE OC 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 VISION OC 10GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 GAMING BOX
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TURBO 10GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 GAMING OC 3X 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 EAGLE OC 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 VISION OC 24GB
GIGABYTE NVIDIA 3090 - GEFORCE RTX 3090 TURBO 24GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TI VISION OC 12GB
GIGABYTE NVIDIA 3080 - GEFORCE RTX 3080 TI TURBO 12GB

Open the Block Finder Ask about a card that is not listed

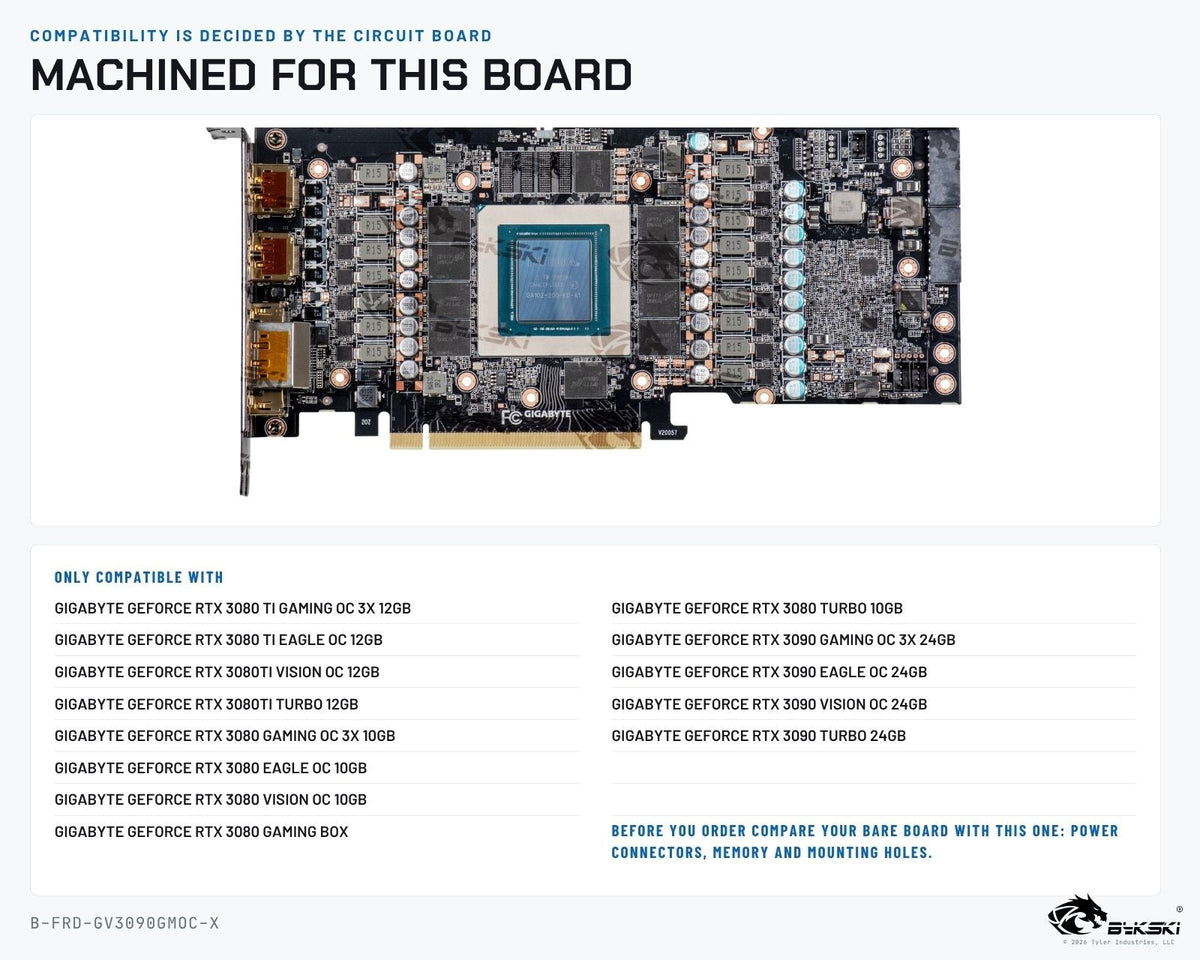

Bykski 360mm AIO Liquid GPU Cooler for Gigabyte RTX 3090 / 3080 Gaming OC (B-FRD-GV3090GMOC-X-360) | role:pcb

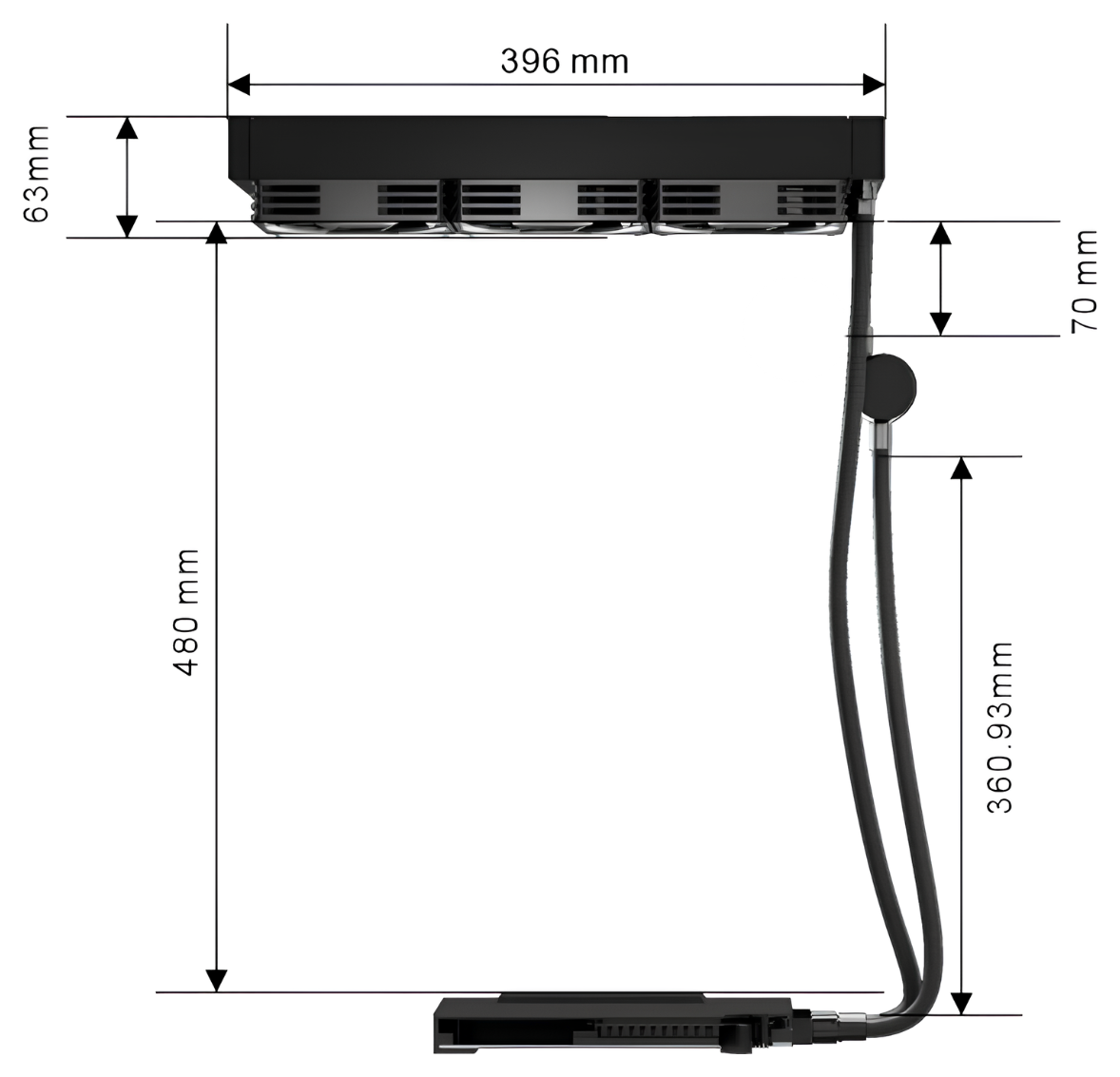

Dimension drawing of the 360 kit laid out straight: 396 mm radiator, 63 mm with fans, 70 mm radiator to pump, 360.93 mm pump to block, 480 mm overall

The second fit question

Measure before you order

Two things have to fit: a 360 mm radiator with its fans, and the card with the block on it. The tubing is flexible, so the pump and the hoses go wherever your case has room, behind the motherboard tray if that is where the space is. Everything here is the same on every GPU cooler we sell except the block, which is sized to the card.

01Radiator, end to end396 mm

02Radiator width120 mm

03Radiator thickness with the fans fitted63 mm

04Radiator to pump, along the tubing70 mm

05Pump to block, along the tubing360.93 mm

06Pump, inline on the tubing40 x 51 mm

07Block for this card, length x height200.00 x 150.00 mm

08Block thickness, including the ports26.50 mm

09Kit laid out straight, top of radiator to block (reference only)480 mm

Measure the radiator mount, not the whole kit. Your case needs a 360 mm radiator position with 63 mm of depth for the radiator and fans together. The 480 mm figure is the kit stretched out straight, not a clearance you need: the hoses bend, and the pump tucks wherever there is room.

Not sure this is the one?

Sealed kit, or just the block

Same cold plate, two ways to buy it, and what happens if you keep the cooler the card shipped with.

	This kit B-FRD-GV3090GMOC-X	The bare block N-GV3090GMOC-X	Stock cooling As the card ships
You already have	A case with a 360 mm radiator mount. Nothing else.	A working water-cooling loop: pump, radiator, reservoir, fittings, coolant.	The card and the cooler it came with: a passive fin stack or a small blower, built to be fed by a server's front-to-back airflow.
Day one	Remove the stock cooler, fit the pads and the block, mount the radiator. Done.	Same block install, then plumb it into your loop, fill and bleed.	Plug it in. In a rack with a cold aisle it runs as designed. In a workstation or desktop case, nothing pushes air through the fin stack.
Serviceable	Sealed. Nothing to fill, bleed or top up.	Every part, because it is your loop.	Nothing to service, and nothing to improve: the cooler can only move the heat the case pushes through it.
Best for	Servers and workstations that need it running this week.	A build that already has water in it.	The rack it was designed for. Not a desktop, a workstation or an open bench, where it throttles under sustained load.
Where to buy it	This page	$233.99 · See the block	You already own it.

What buyers said

Left by people who bought this part here. Compatibility reports are the useful ones — if you fitted it, say which board.

Questions people ask about this cooler

Answers specific to B-FRD-GV3090GMOC-X. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.

Do I have to build a loop?

No. It arrives sealed, filled and bled. Remove the stock cooler, fit the block, mount the radiator and plug in the fans and the pump. No filling, no bleeding, no leak test, and no coolant to buy.

What is in the box for the thermal interface?

Thermal paste for the GPU chip and thermal pads in strips for the memory and the power stages. The block cools the front of the card; the back gets the aluminum backplate.

Will it fit my card?

Compatibility is decided by the circuit board, not the name on the box. The block in this kit is machined for the Gigabyte RTX 3090 / 3080 Gaming OC board, and the list on this page is the complete list. Check your card in the Block Finder first; if you are still not sure, send us a photo of the board with the cooler off before you order. Part number B-FRD-GV3090GMOC-X.

Will the radiator fit my case?

Your case needs a 360 mm radiator position with 63 mm of depth for the radiator and fans together. The tubing is flexible, so the pump and the hoses go wherever there is room, behind the motherboard tray if that is where the space is. Measure the radiator mount: the 480 mm figure on the drawing is the kit laid out straight, not a clearance you need.

Why is the pump not on the block?

It is inline, in the tubing between the block and the radiator. Nothing is mounted to the card and nothing vibrates against it, so it runs quieter than a pump built into a block. The loop is sealed, so the pump is not a part you service.

Can I cancel my pre-order?

Yes. A pre-order can be cancelled any time before it ships, for a full refund. Nothing is committed until it leaves Boise.

Is liquid always worth it?

No, and we will say so. A single card with room around it is fine on air. It changes when cards are packed together, when the card is passive, when the case is small, or when the machine runs at full load for hours rather than minutes.

Who handles the warranty?

BYKSKI.US, the exclusive US distributor, from Boise, Idaho. Claims are handled domestically rather than returned to an overseas factory.

Ask us before you order

Send your exact hardware model and we'll confirm the right part before you spend $449.99 — or tell you honestly that this isn't the one.

Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
