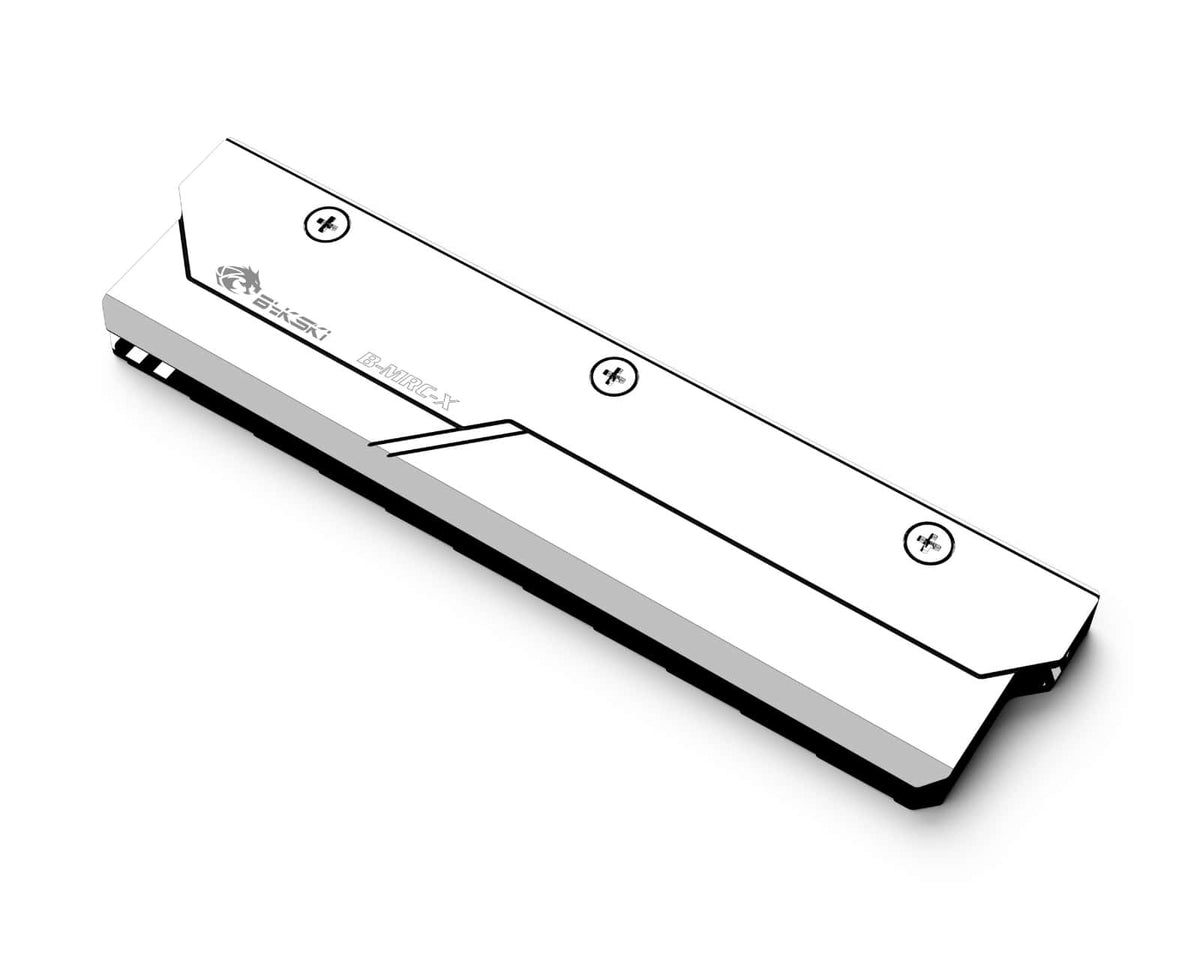

Bykski DDR5 Memory Copper Air Cooling Armor (B-MRC-X )
US import duties and tariffs are included in every price.
What installing it actually involves
Three steps, in the order that matters. The one people get wrong is the first.
>Memory: DDR5 — the exact model, not the family. Partner boards differ.
Thermal interface material as supplied. Even mounting pressure, correct bracket orientation, no over-torquing.
Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.
About this part
The Bykski Memory Armor heatsink is the perfect solution for your high-performance cooling needs. One side features a dragon-scale fin texture which increases the contact area of red copper to air providing superior heat dissipation. The other side is a mirror plating offering a sleek look. With precision machining, these air-cooling-orientated armor heat spreaders are sure to impress.
The Bykski Memory Armor heatsink is the perfect solution for your high-performance cooling needs. One side features a dragon-scale fin texture which increases the contact area of red copper to air providing superior heat dissipation. The other side is a mirror plating offering a sleek look. With precision machining, these air-cooling-orientated armor heat spreaders are sure to impress.
What buyers said
Left by people who bought this part here. Compatibility reports are the useful ones — if you fitted it, say which board.
Customer Reviews
Put these on my G.SKILL Trident Z5 CK Series DDR5 RAM (Intel XMP 3.0) 48GB (2x24GB) 8200MT/s CL40-52-52-131 1.40V Desktop Computer Memory CU-DIMM - Mirror Black (F5-8200C4052G24GX2-TZ5CK), put a fan over them. They running great with good temps.
Misleading product images. It is not made clear enough that this is only ONE heatsink, for a single DIMM, while all images of it installed show four. It’s super expensive but I figured it made sense for four of them. A single heatsink for over $50 USD is absurd.
Does not fit my memory (Dual Rank DDR5) - the heatsink does not extend all the way to the bottom of the memory chips, only about halfway down them. I tried installing it anyway. My bare stick next to it runs 3°C cooler under load than the one with the heatsink. The silver lining to all this is that I learned my stock heatsinks were actually insulating my memory, as the bare stick runs over 7°C cooler than stock.
Hello,
The heatsink did not sit properly on the ram, preventing me from installing. I have returned the product and I am waiting for refund.
I bought these heatsinks to replace the stock G-skill heatsinks on my Hynix A-die, in addition to a fan pointed at the DIMMs. At 1.4v stock, the DIMMs would hit 69c. After the new heatsinks and fan, the same test at 1.5v hit 52c max. 17c improvement while increasing the voltage significantly.

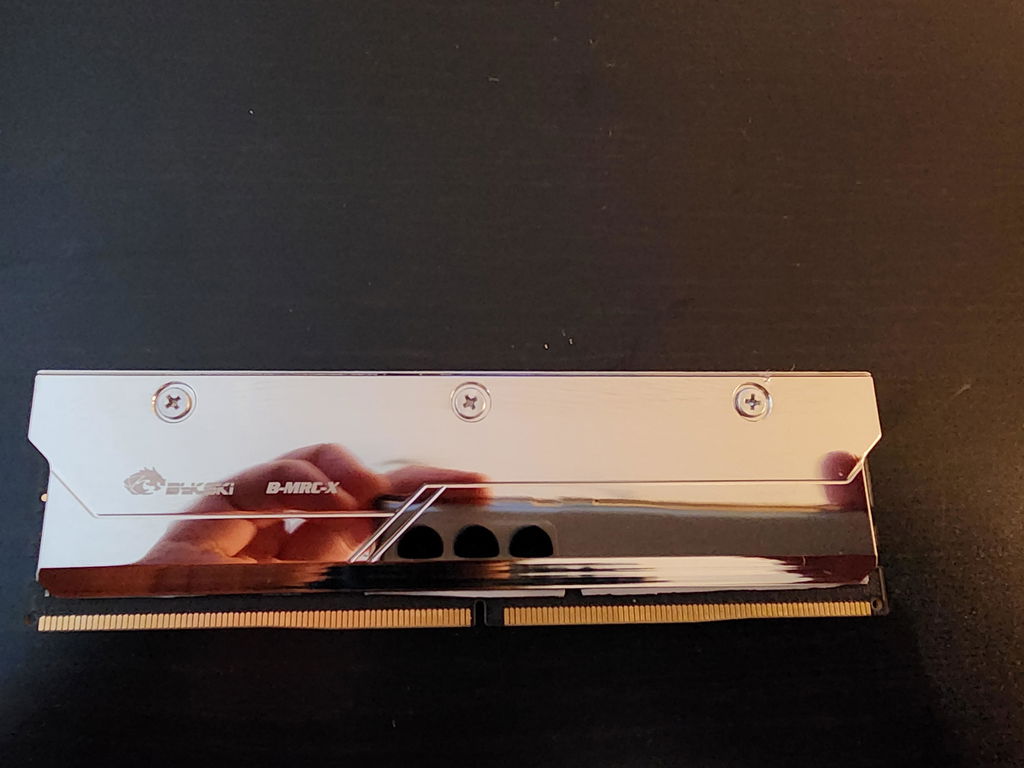

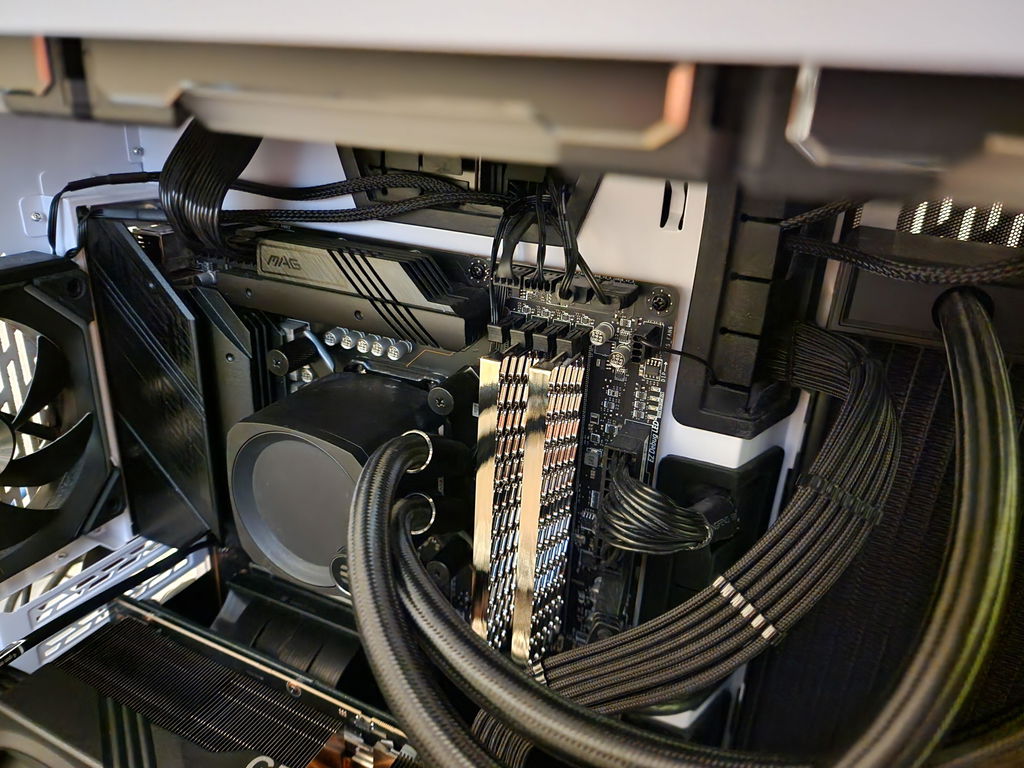

Finally got around to putting these on, so I figured I'd write a review about them

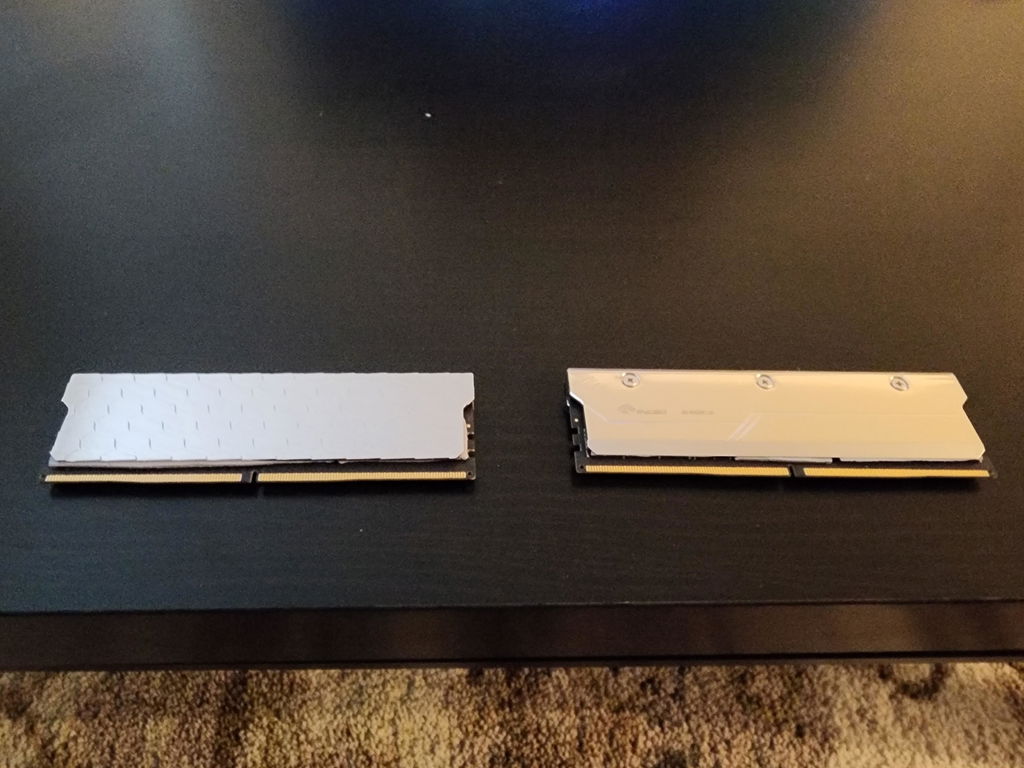

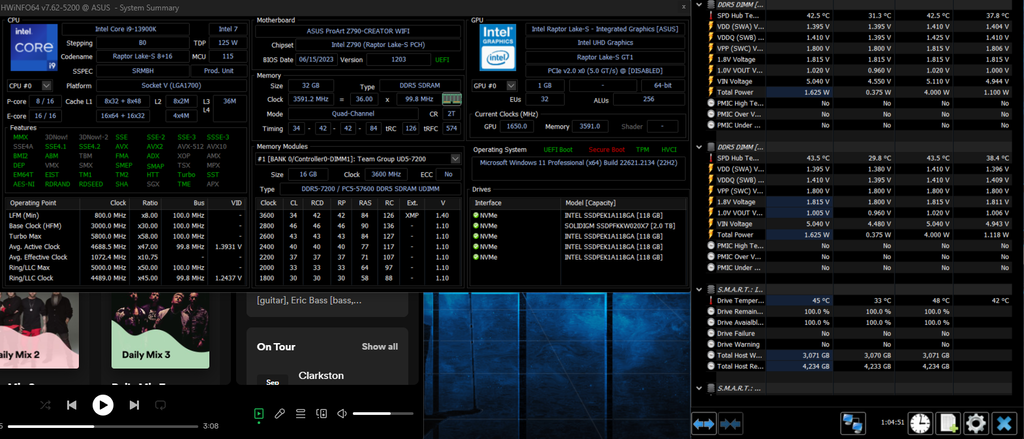

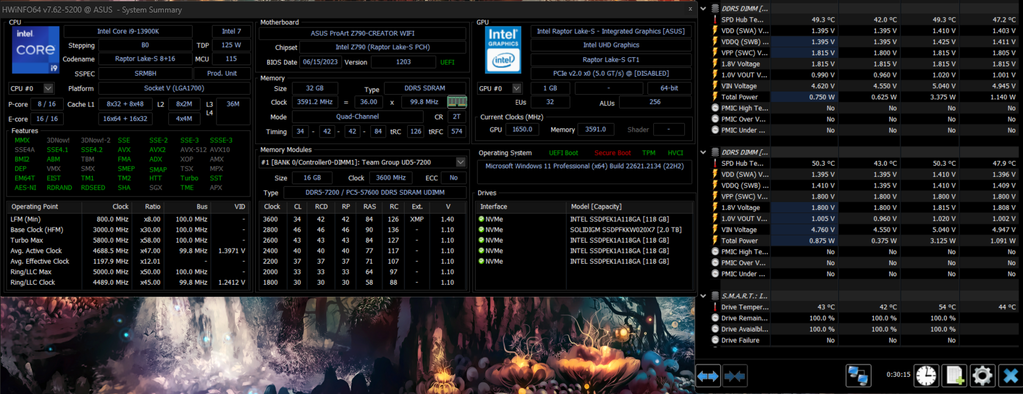

They're substantial heatsinks, they have some heft. Stock settings after ~1 hour of running these versus what came with my Teamgroup DDR5 C36-7200 2x16 kit, there's a huge difference at stock settings. ~43°c vs ~50°c, though ironically when I removed the Teamgroup heatspreader and ran the dimms naked to test them even that ran cooler than their solution by a few degrees. Get what you pay for I guess
Used (KLE-GSW362) automotive wax remover to take the old heatspreaders off, soaked them for ~45 minutes each and they came right off with the help of a plastic spudger. Not that I'm recommending that: use that or your own solution at your own risk of course

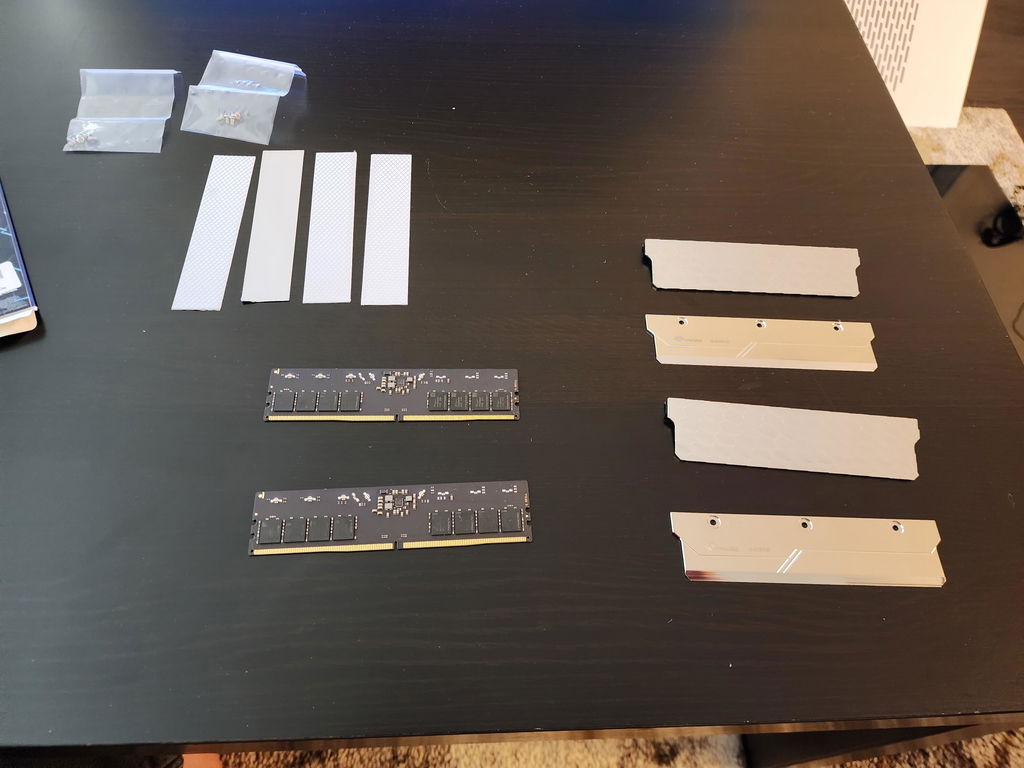

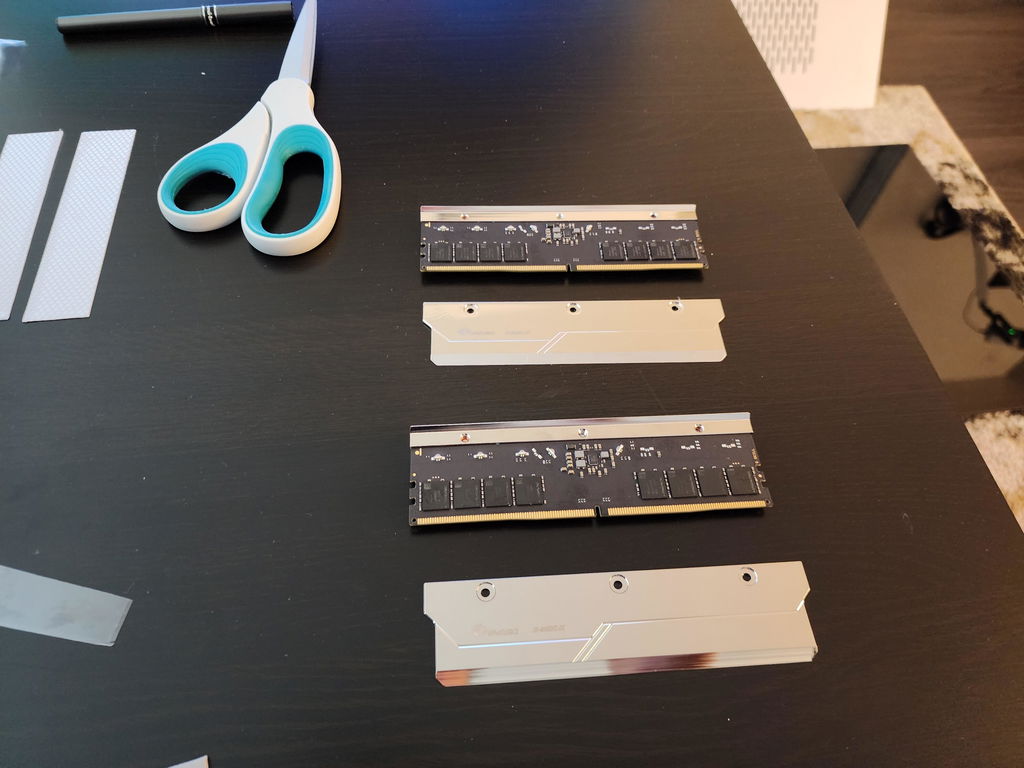

Used the little strips that came with this kit for the memory and controller on the front, and 1.5mm Gelid GP-Ultimate thermal pads cut from a 120x120mm square covering the entirety of the back, excluding the RGB which I have no interest in cooling down
IMO, this is a very good product, well worth their cost if you're planning on trying to eke the most out of your system
Questions people ask about this part
Answers specific to B-MRC-X. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.
What does this part fit?
Is it in stock, and when will it ship?
Can I return it if it turns out not to fit?
Will I pay import duties or customs charges on delivery?
Who handles the warranty?
Is shipping free?
Are printed instructions included?
Do I need anything else to use it?
Ask us before you order
Send your exact hardware model and we'll confirm the right part before you spend $53.99 — or tell you honestly that this isn't the one.
Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
