Bykski Durable 360mm AIO Liquid GPU Cooler For NVIDIA GeForce RTX 4080 SUPER 32GB (B-FRD-RTX4080S-SR-360)
US import duties and tariffs are included in every price.
Sealed. Filled. Bled.
A complete liquid cooler for the NVIDIA GeForce RTX 4080 SUPER 32GB, sealed at the factory. One copper block covers the GPU, the memory and the power stages; the radiator mounts at the front or top of your case and pushes the heat out. Strip the stock cooler, fit the block, mount the radiator. No filling, no bleeding, no leak test.
Heat leaves the case instead of heating everything else in it
A stock air cooler blows the NVIDIA GeForce RTX 4080 SUPER 32GB's heat into the case, where your other cards and the CPU have to deal with it. This kit carries it through the tubing to the radiator, and the fans push it straight out of the case.
The noise moves too. Three big fans turning slowly on the radiator replace a small blower screaming an inch from the chip. Same heat removed, most of the noise gone.
Built for a card that never gets a break. A NVIDIA GeForce RTX 4080 SUPER 32GB in a server can run at full load for hours at a time, and this cooler is sized for that, not for an evening of gaming.
The pump is inline, not on the block
On most all-in-one coolers the pump is built into the block. On this kit it is inline, in the tubing between the block and the radiator, and nothing is mounted to the card.
There is nothing to mount and nothing vibrating against the card. Because the pump is not pressing against anything, it runs quieter than a pump built into a block.
It is compact and powerful: a 40 mm can, 51 mm tall, moving 450 liters an hour, at 7000 RPM on a 4-pin PWM header.
Pump6 specs
Radiator, fans, block
About this part

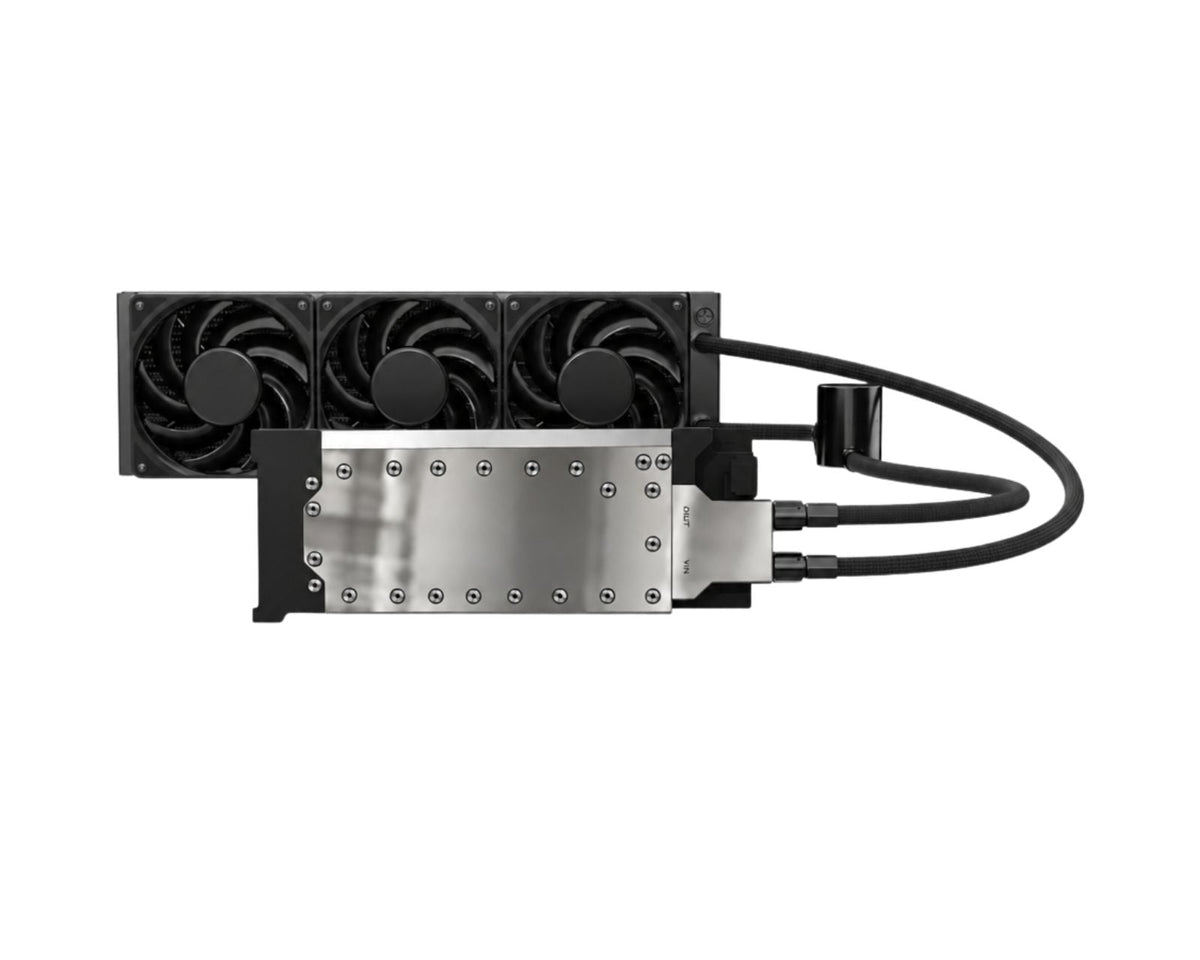

The Bykski B-FRD-RTX4080S-SR-360 is a sealed all-in-one liquid cooling kit for the NVIDIA GeForce RTX 4080 SUPER 32GB. The 360 mm radiator, inline pump, tubing, cooling fans, and water block arrive pre-assembled, pre-filled, and pre-bled with no custom loop to build.
This sealed kit transfers heat from the GPU chip, memory, and power stages to a 360 mm aluminum radiator. Placing the 7000 RPM pump inline in the tubing keeps vibration off the card for quiet operation and even contact across the circuit board.
GPU water block with backplate: pre-assembled with 360 mm radiator, inline pump, and tubing (pre-filled)
Cooling fans: 3 x 120 mm PWM
Thermal interface: Thermal pads for memory and power stages
Thermal paste: 1 tube for GPU chip
Mounting hardware: spring screws, backplate screws, washers
Technical specifications 6 specs
| Tubing | |
|---|---|
| Tubing Material | EPDM Braided |
| Tubing Outer Diameter | 12 mm |
| Tubing Length Pump to Block | 360.93 mm |
| Tubing Length Radiator to Pump | 70 mm |
| General | |
| Port Thread | G1/4 |
| Warranty | 1 Year |

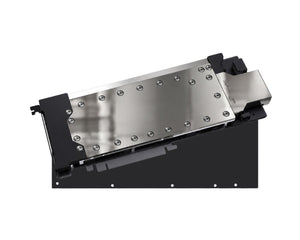

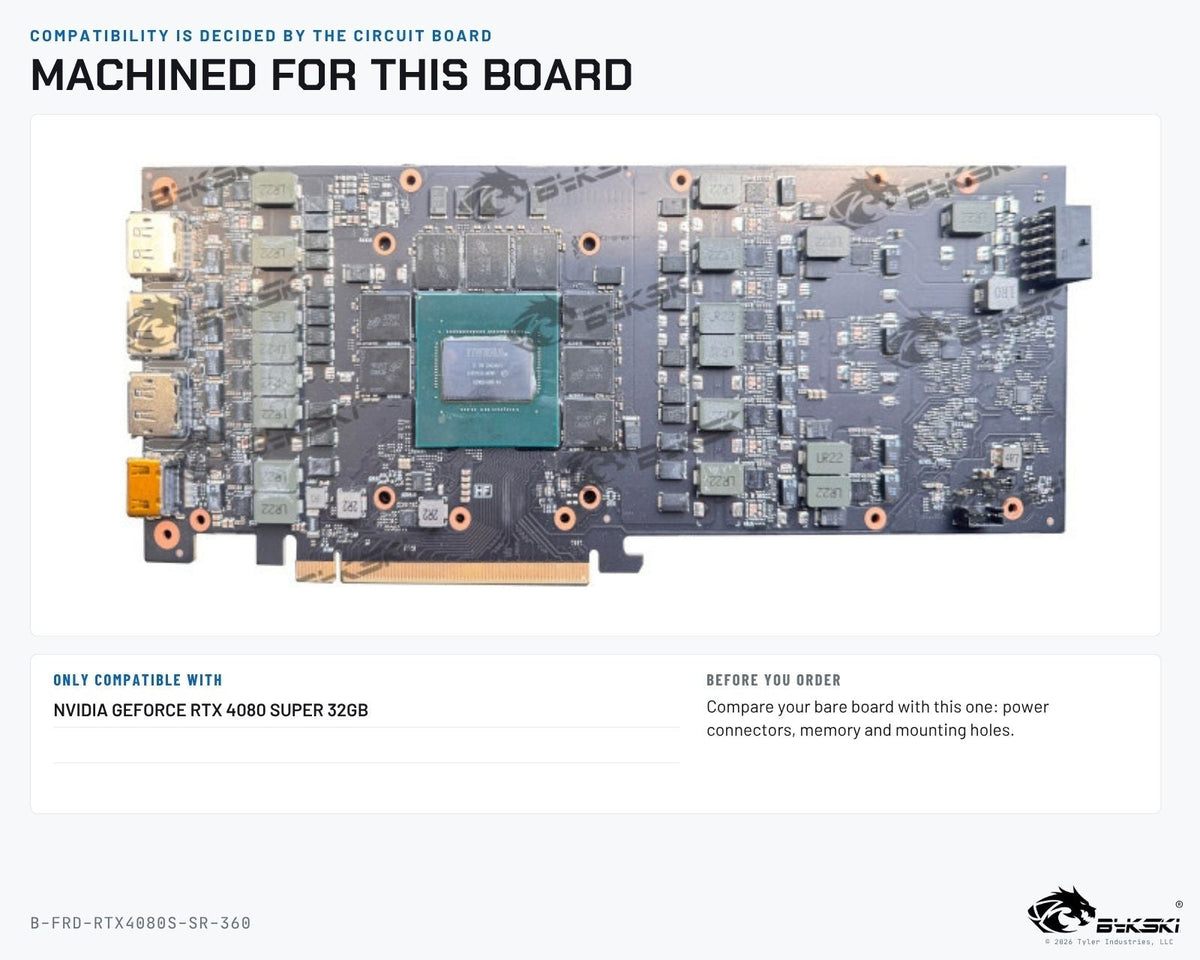

Machined for the NVIDIA GeForce RTX 4080 SUPER 32GB board
Two cards with the same name can be built on different circuit boards, and the block only fits the one it was machined for. This is that board. Check your card in the Block Finder first. If you are still not sure, send us a picture of your card with the cooler off before you order.
ONLY Compatible with:
NVIDIA 4080 - GEFORCE - RTX 4080 SUPER 32GB
Measure before you order
Two things have to fit: a 360 mm radiator with its fans, and the card with the block on it. The tubing is flexible, so the pump and the hoses go wherever your case has room, behind the motherboard tray if that is where the space is. Everything here is the same on every GPU cooler we sell except the block, which is sized to the card.
Sealed kit, or just the block
Same cold plate, two ways to buy it, and what happens if you keep the cooler the card shipped with.
 B-FRD-RTX4080S-SR-360 |
 N-RTX4080S-SR | Stock cooling
As the card ships
|
|
|---|---|---|---|
| You already have | A case with a 360 mm radiator mount. Nothing else. | A working water-cooling loop: pump, radiator, reservoir, fittings, coolant. | The card and the cooler it came with: a passive fin stack or a small blower, built to be fed by a server's front-to-back airflow. |
| Day one | Remove the stock cooler, fit the pads and the block, mount the radiator. Done. | Same block install, then plumb it into your loop, fill and bleed. | Plug it in. In a rack with a cold aisle it runs as designed. In a workstation or desktop case, nothing pushes air through the fin stack. |
| Serviceable | Sealed. Nothing to fill, bleed or top up. | Every part, because it is your loop. | Nothing to service, and nothing to improve: the cooler can only move the heat the case pushes through it. |
| Best for | Servers and workstations that need it running this week. | A build that already has water in it. | The rack it was designed for. Not a desktop, a workstation or an open bench, where it throttles under sustained load. |
| Where to buy it | This page | $299.99 · See the block | You already own it. |
What buyers said
Left by people who bought this part here. Compatibility reports are the useful ones — if you fitted it, say which board.
Questions people ask about this cooler
Answers specific to B-FRD-RTX4080S-SR-360. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.
Do I have to build a loop?
What is in the box for the thermal interface?
Will it fit my card?
Will the radiator fit my case?
Why is the pump not on the block?
Can I cancel my pre-order?
Is liquid always worth it?
Who handles the warranty?
Ask us before you order
Send your exact hardware model and we'll confirm the right part before you spend $549.99 — or tell you honestly that this isn't the one.
Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
