Bykski Durable All Metal GPU Water Block and Backplate For NVIDIA GeForce RTX 4080 SUPER 32GB (N-RTX4080S-SR) - Continuous Usage
US import duties and tariffs are included in every price.
What installing it actually involves
Three steps, in the order that matters. The one people get wrong is the first.
NVIDIA NVIDIA 4080 - GEFORCE RTX 4080 SUPER 32GB — the exact model, not the family. Partner boards differ.
Thermal interface material as supplied. Even mounting pressure, correct bracket orientation, no over-torquing.
Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.
About this part

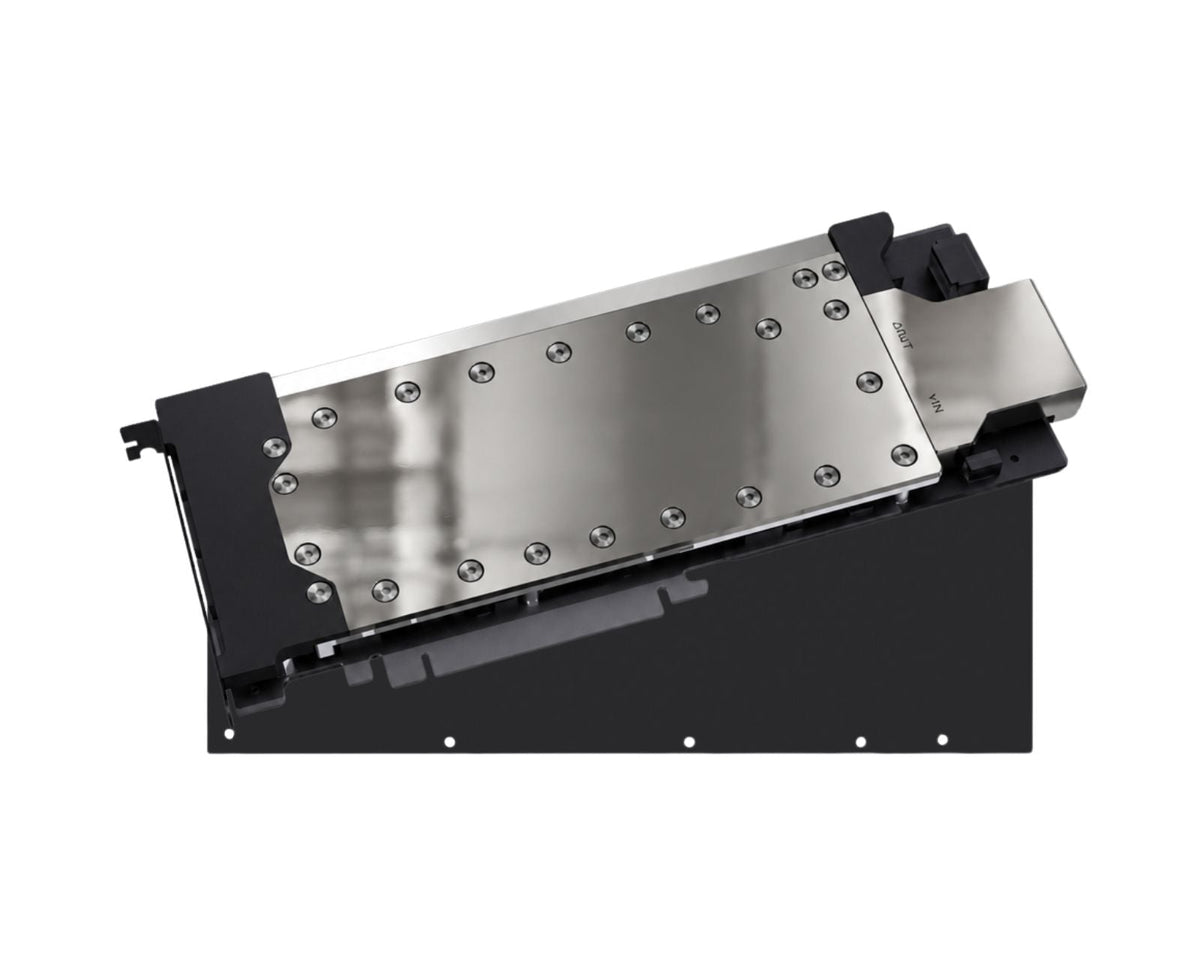

The Bykski N-RTX4080S-SR is a continuous-duty liquid cooling block for NVIDIA GeForce RTX 4080 SUPER 32GB graphics cards. It covers the GPU chip, memory, and power stages in one pass. Removing the stock heatsink transfers the card's thermal load directly to the liquid cooling loop.
Machined from T2 copper with 0.001-0.002 mm electroless nickel plating, the 9.5 mm cold plate features a 0.35 mm base over the GPU core and 56 micro-channels that are 0.3 mm wide. The nickel-plated copper top and EPDM seal are rated for up to 4 bar working pressure, and an aluminum backplate supports the circuit board.
- GPU water block with backplate: 1
- 1.5 mm thermal pads: 5
- 0.5 mm gaskets: 4
- M2 x 5 mm spring screws: 4
- M2 x 10.3 mm backplate screws: 8
Technical specifications 22 specs
| Product Type | GPU Water Block |
|---|---|
| Model | N-RTX4080S-SR |
| Compatibility | NVIDIA GeForce RTX 4080 SUPER 32GB |
| Block Material | Nickel-Plated T2 Copper |
| Top Panel Material | Nickel-Plated Copper |
| Backplate Material | Aluminum |
| Cold Plate Base Thickness | 0.35 mm |
| Total Cold Plate Thickness | 9.5 mm |
| Cold Plate Length | 196 mm |
| Micro-Channel Fin Width | 0.3 mm |
| Micro-Channel Count | 56 |
| Channel Surface Area | 15565.2954 mm2 |
| Plating | Electroless Nickel Plating (0.001 mm - 0.002 mm) |
| Sealing Material | EPDM |
| Port Thread | G1/4 |
| Working Pressure | Max 4 bar |
| Operating Temperature | -20 C to 60 C |
| Coolant Compatibility | Water, Ethylene Glycol, Propylene Glycol, Fluorinated Liquid, Mineral Oil |
| Block Dimensions | 277.64 x 101.98 x 17.0 mm |
| Backplate Dimensions | 266.67 x 101.95 x 3.96 mm |
| Net Weight | 1.5 kg |
| Warranty | 1 Year |
