Bykski GPU Water Block and Backplate For GIGABYTE Radeon RX 9070 XT GAMING OC 16G (A-GV9070GMOC-X)
US import duties and tariffs are included in every price.
This block with radiator, pump and fans, pre-filled and sealed. No loop to build.
360 All-in-One (AIO), 3 x 120mm fans
B-FRD-GV9070GMOC-X-360
$449.99See the kit →
About this part
The Bykski A-GV9070GMOC-X is a full-coverage GPU water block with a matching aluminum backplate. Its copper base covers the GPU chip, the memory and the power stages, and the transparent top shows the coolant loop.
Cooling the memory and power stages directly, not only the GPU chip, lowers card temperatures under load and removes the stock cooler's fan noise from the build. It is the choice for a custom loop over an AIO.

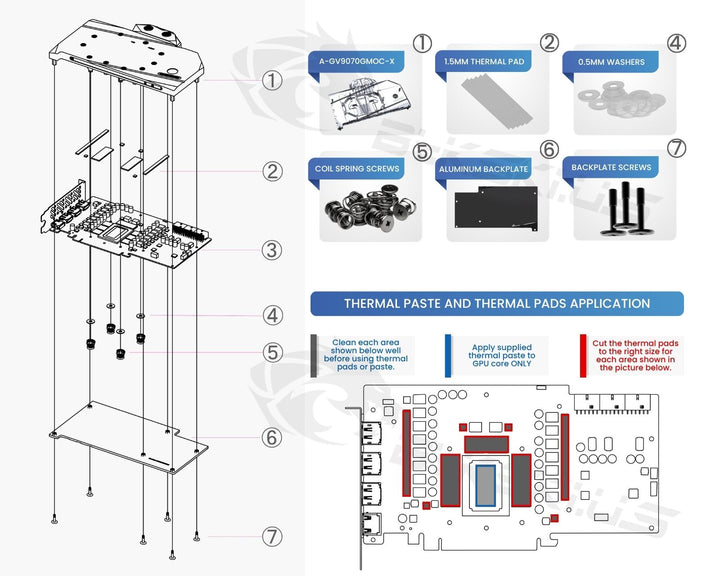

GPU water block with backplate: 1
Aluminum backplate: 1
Thermal paste: included
1.5 mm thermal pad: 4
0.5 mm washer: 4
M2 x 5 mm coil spring screw: 4
M2 x 9.5 mm backplate screw: 6

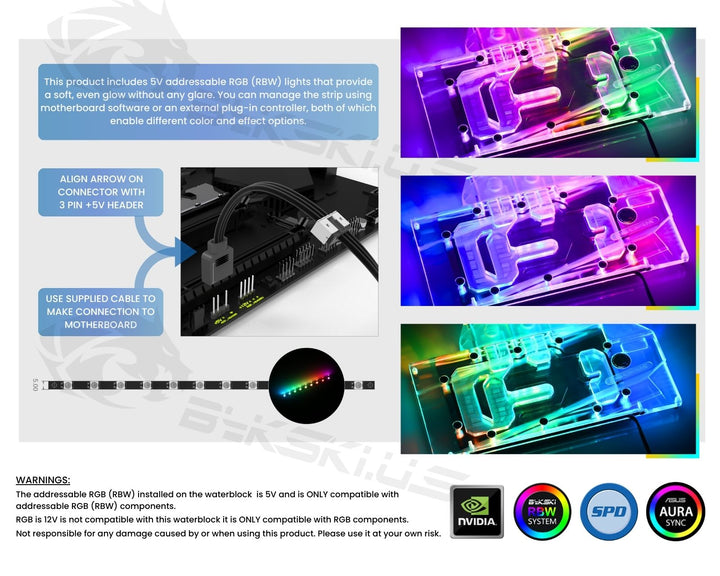

5V addressable RGB (RBW) strip: 1
Technical specifications 12 specs
| Block Material | Nickel-plated T2 copper, acrylic top |
|---|---|
| Base Thickness | 0.35 mm T2 copper |
| Plating | Electroless nickel, 0.001-0.002 mm layer thickness |
| Micro-channels | 0.3 mm jet-type |
| Water Channel Area | 13560 mm2 (manufacturer figure) |
| Backplate Material | Aluminum, black anodized (not in contact with coolant) |

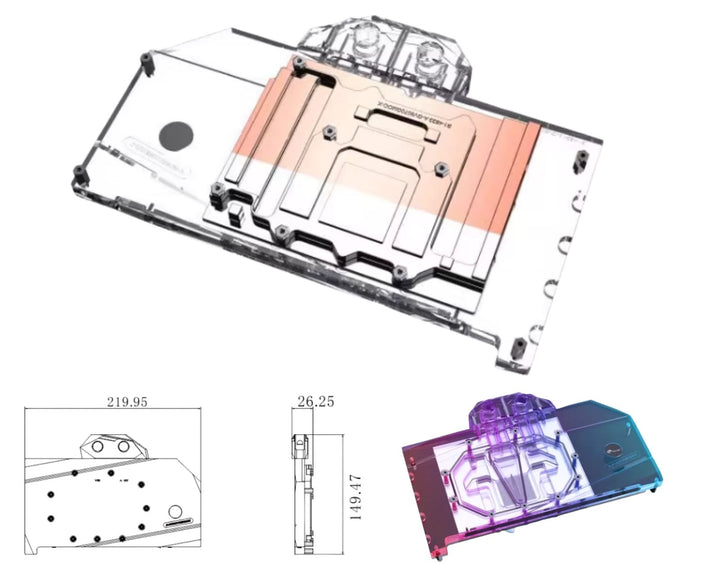

| Backplate Dimensions | 219.95 x 119.47 x 5.98 mm |
| Dimensions | 219.95 x 149.47 x 26.25 mm |
| Port Thread | G1/4 |
| Lighting | 5V ARGB |
| Lighting Header | 3-pin +5V |
| Warranty | 1 year, covers defects |
Sealed kit, or just the block
Same cold plate, two ways to buy it, and what happens if you keep the cooler the card shipped with.
 B-FRD-GV9070GMOC-X-360 |
 A-GV9070GMOC-X | Stock cooling
As the card ships
|
|
|---|---|---|---|
| You already have | A case with a 360 mm radiator mount. Nothing else. | A working water-cooling loop: pump, radiator, reservoir, fittings, coolant. | The card and the air cooler it came with: a heatsink and fans that blow the card's heat into the case. |
| Day one | Remove the stock cooler, install the pads and the block, mount the radiator. Done. | Same block install, then plumb it into your loop, fill and bleed. | Nothing to install. Under a long gaming or render load the fans spin up and the heat stays in the case. |
| Serviceable | Sealed. Nothing to fill, bleed or top up. | Every part, because it is your loop. | Clean the dust out of the fins now and then. The cooler can only work with the air your case gives it. |
| Best for | Gaming and creator builds that want the card cool and quiet, with no loop to build. | A build that already has water in it. | Short loads in a case with plenty of airflow. |
| Where to buy it | $449.99 · See the kit | This page | You already own it. |
What buyers said
Left by people who bought this part here. Compatibility reports are the useful ones — if you installed it, say which board.
Customer Reviews
thumbs up

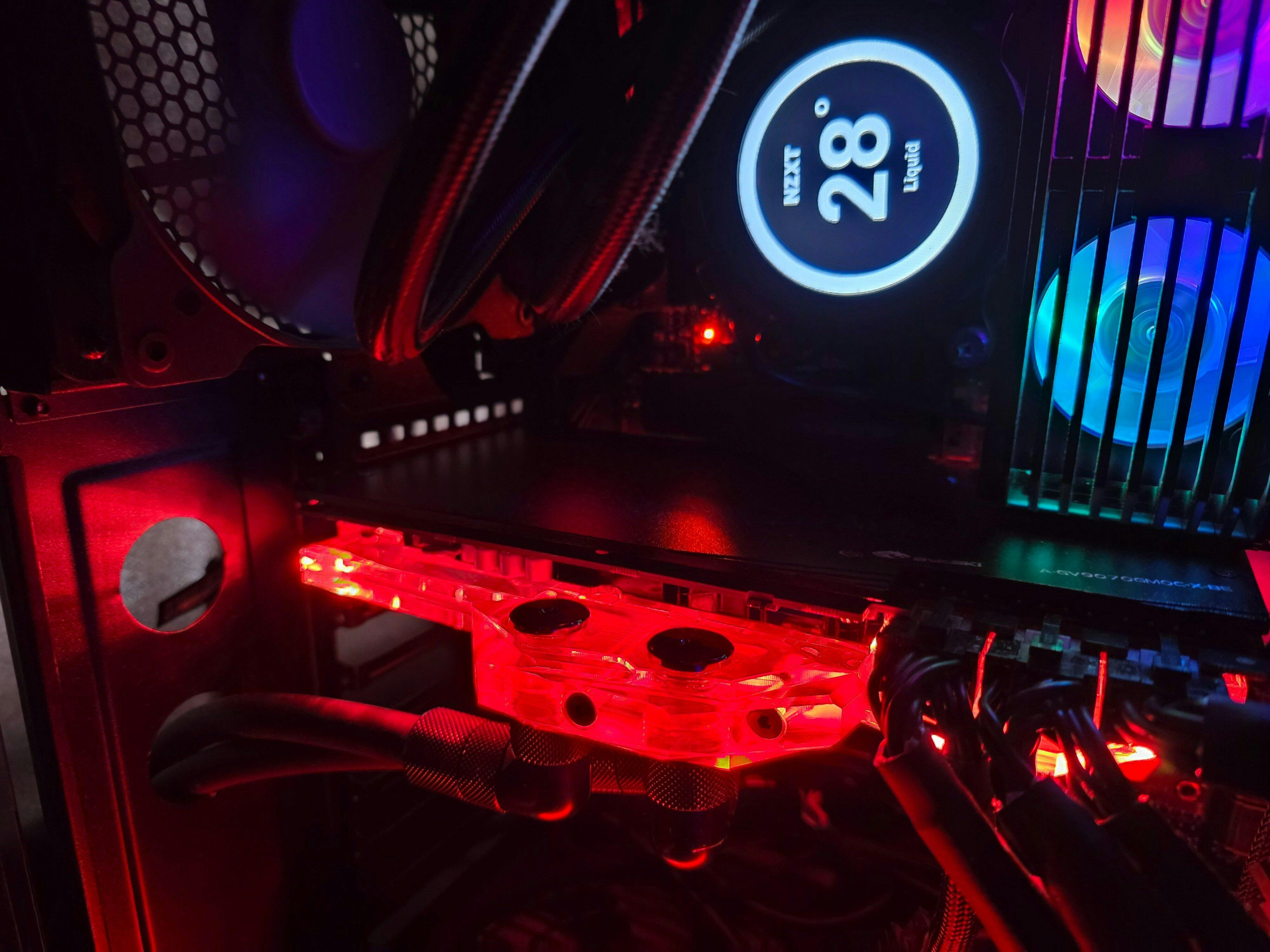

Great product. Super easy to install. My 2nd waterblock after a 1080 back in the day. All pads and thermal compound included. Great temps produced.
Only needs some printed instructions in the box.
I've used Bykski full coverage blocks before, and this once isn't any different. Ease of install, straightforward and a flush fit. My only concern would be determining appropriate o-ring sizes for my blocks in case I would need to replace them after cleaning out fins every now and then, and they're not advertised with the product.
works great I have two of them.
What installing it actually involves
Three steps, in the order that matters. The one people get wrong is the first.

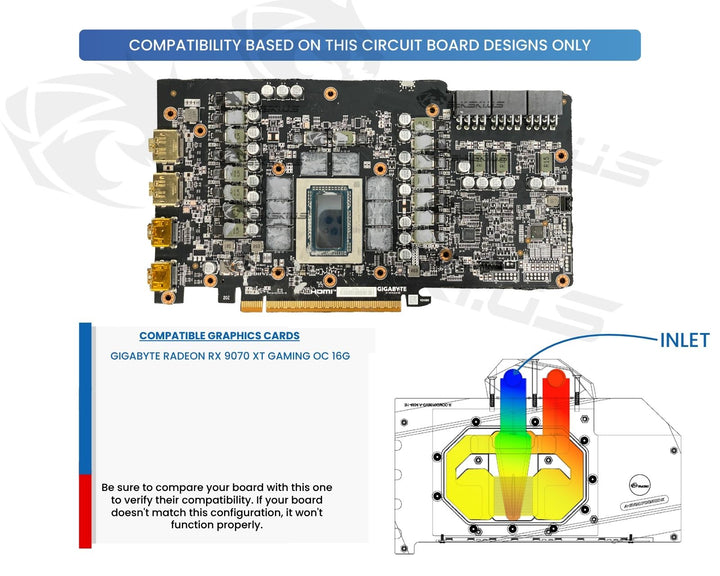

This block fits 2 boards:
- GIGABYTE AMD 9070 - RADEON RX 9070 XT GAMING OC 16GB
- GIGABYTE AMD 9070 - RADEON RX 9070 GAMING OC 16GB
Match your exact model — not the family.
Thermal interface material as supplied. Even mounting pressure, correct bracket orientation, no over-torquing.
Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.
Questions people ask about this part
Answers specific to A-GV9070GMOC-X. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.
What does this part fit?
It is machined for 2 boards:
- GIGABYTE AMD 9070 - RADEON RX 9070 XT GAMING OC 16GB
- GIGABYTE AMD 9070 - RADEON RX 9070 GAMING OC 16GB
Bykski cut these to a specific hardware layout, so match your exact model rather than the family before ordering. Part number A-GV9070GMOC-X.
Is it in stock, and when will it ship?
Can I return it if it turns out not to fit?
Will I pay import duties or customs charges on delivery?
Who handles the warranty?
Is shipping free?
Are printed instructions included?
Do I need anything else to use it?
Ask us before you order
Send your exact hardware model and we'll confirm the right part before you spend $233.99 — or tell you honestly that this isn't the one.
Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
